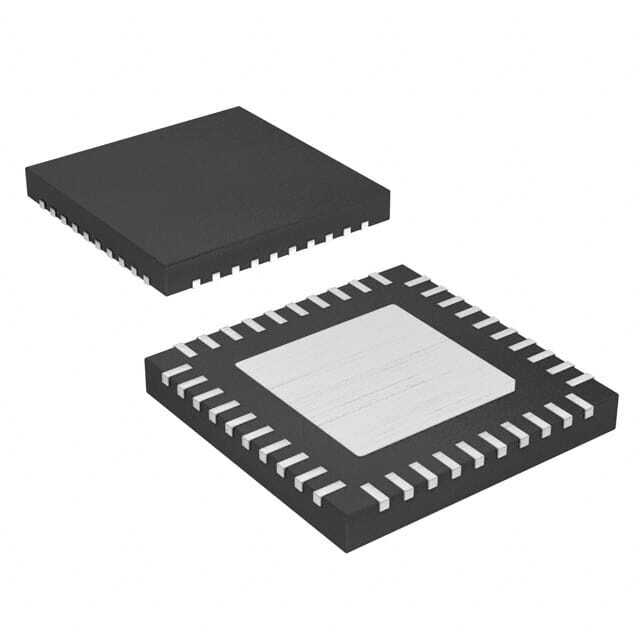

XRP7740ILB-F

SKU: 107392

Manufacturer: MaxLinear, Inc

DC/DC Cntrlr Quad-OUT Step Down 1500kHz 40-Pin TQFN EP Bulk

320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
Number of Outputs	4
Topology	Step Down
Output Voltage (V)	0.9 to 5.1
Maximum Output Current (A)	5
Maximum Switching Frequency (kHz)	1500
Minimum Input Voltage (V)	6.5
Maximum Input Voltage (V)	20
Maximum Supply Current (mA)	50(Typ)
Typical Gate Driver Pull Up Resistance (Ohm)	3/3
Typical Gate Driver Pull Down Resistance (Ohm)	1.8/1.8
Minimum Switching Frequency (kHz)	300
Control Method	PWM
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Bulk
Original Package	TQFN EP
Pin Count	40
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.73
Package Length	6
Package Width	6
PCB changed	40
