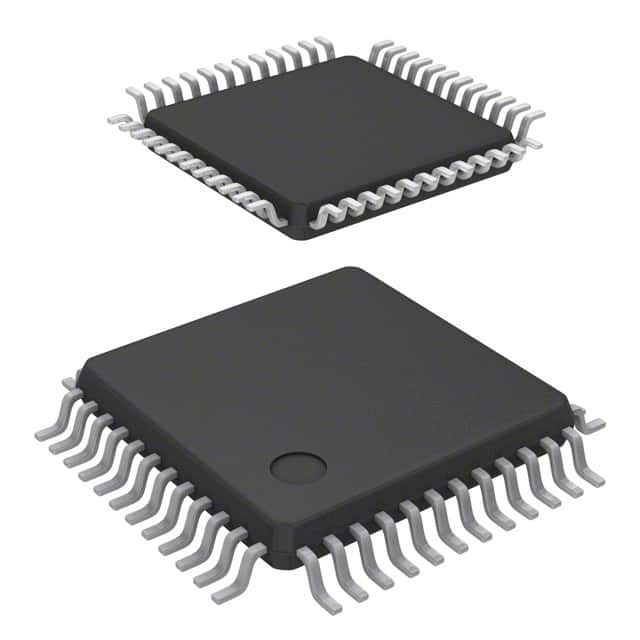

XR28V384IM48TR-F

SKU: 22563

Manufacturer: MaxLinear, Inc

LPC 1.1-to-UART 4-CH 128byte FIFO 3.3V 48-Pin TQFP T/R

1330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Number of Channels per Chip	4
Transmit FIFO (byte)	128
Receive FIFO (byte)	128
Maximum Data Rate	3Mbps
Transmitter and Receiver FIFO Counter	No
Standard Supported	RS-485
Operating Supply Voltage-Min (V)	2.97
Operating Supply Voltage-Max (V)	3.63
Typical Operating Supply Voltage (V)	3.3
Maximum Supply Current (mA)	17
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	85
DMA Support	No
False Start Bit Detection	Yes
Automatic Software Flow Control	No
Supplier Temperature Grade	Industrial
Automatic Hardware Flow Control	No
Packing Method	Tape and Reel
Pin Count	48
Original Package	TQFP
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1
Package Length	7
Package Width	7
PCB changed	48
