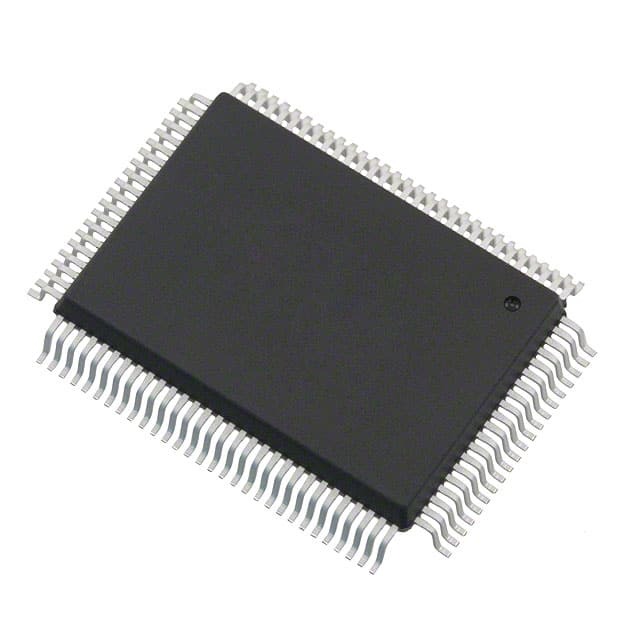

XR16V698IQ100-F MaxLinear, Inc

XR16V698IQ100-F

SKU: 158791

Manufacturer: MaxLinear, Inc

UART 8-CH 32byte FIFO 2.5V/3.3V 100-Pin PQFP

Download sample

Request Free Samples

1010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Number of Channels per Chip	8
Transmit FIFO (byte)	32
Receive FIFO (byte)	32
Maximum Data Rate	15Mbps
Transmitter and Receiver FIFO Counter	Yes
Standard Supported	RS-485
Operating Supply Voltage-Min (V)	2.25
Operating Supply Voltage-Max (V)	3.6
Typical Operating Supply Voltage (V)	2.5
Maximum Supply Current (mA)	2.5
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	85
DMA Support	Yes
False Start Bit Detection	Yes
Automatic Software Flow Control	Yes
Supplier Temperature Grade	Industrial
Automatic Hardware Flow Control	Yes
Pin Count	100
Original Package	PQFP
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	3.05(Max)
Package Length	20.1(Max)
Package Width	14.1(Max)
PCB changed	100
