XR16L2750IM-F MaxLinear, Inc

XR16L2750IM-F

SKU: 79116

Manufacturer: MaxLinear, Inc

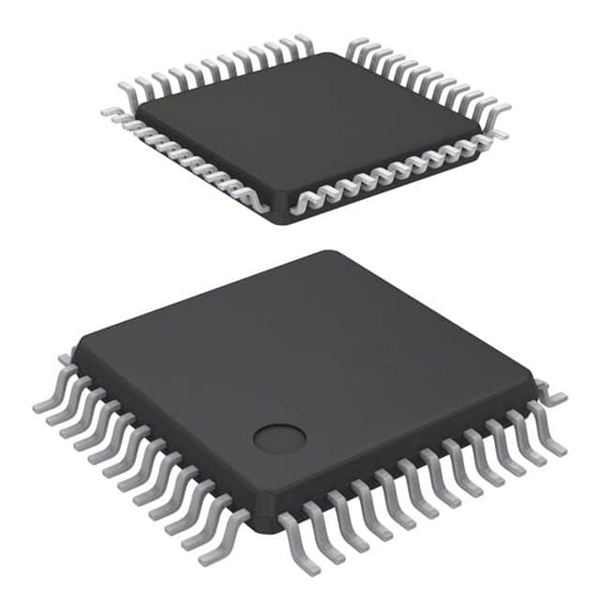

UART 2-CH 64byte FIFO 2.5V/3.3V/5V 48-Pin TQFP

Download sample

Request Free Samples

13800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Channels per Chip	2
Transmit FIFO (byte)	64
Receive FIFO (byte)	64
Maximum Data Rate	6.25Mbps
Transmitter and Receiver FIFO Counter	Yes
Standard Supported	RS-232
Process Technology	CMOS
Operating Supply Voltage-Min (V)	2.25
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	2.5
Maximum Supply Current (mA)	5
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	85
DMA Support	Yes
False Start Bit Detection	Yes
Automatic Software Flow Control	Yes
Supplier Temperature Grade	Industrial
Automatic Hardware Flow Control	Yes
Pin Count	48
Original Package	TQFP
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1
Package Length	7
Package Width	7
PCB changed	48
