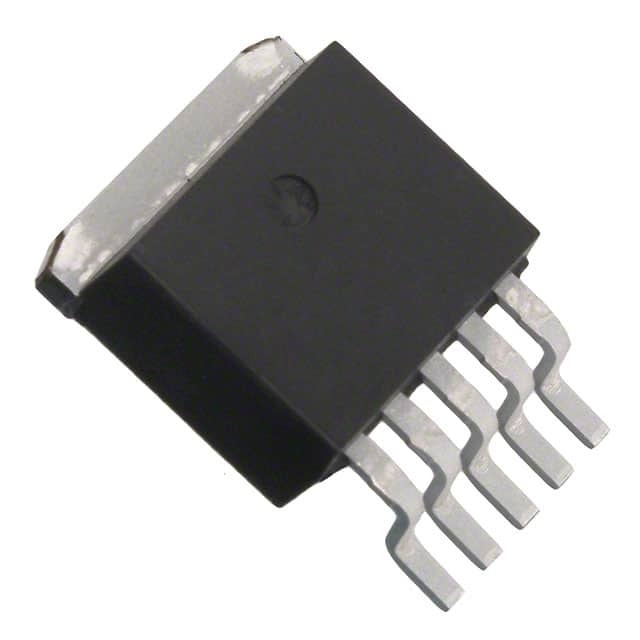

SPX2941T5-L/TR

SKU: 106627

Manufacturer: MaxLinear, Inc

LDO Regulator Pos 1.25V 1A 6-Pin(5+Tab) TO-263 T/R

1820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±3
Output Type	Adjustable
Output Voltage (V)	1.25(Min)
Maximum Output Current (A)	1
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	16
Maximum Dropout Voltage @ Current (V)	0.2@100mA
Reference Voltage (V)	1.252
Line Regulation	1%
Load Regulation	1.5%
Maximum Quiescent Current (mA)	25
Junction to Ambient	31.2°C/W(Typ)
Junction to Case	3°C/W(Typ)
Special Features	Shutdown
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TO-263
Pin Count	6
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.67(Max)
Package Width	9.65(Max)
PCB changed	5
Tab	Tab
