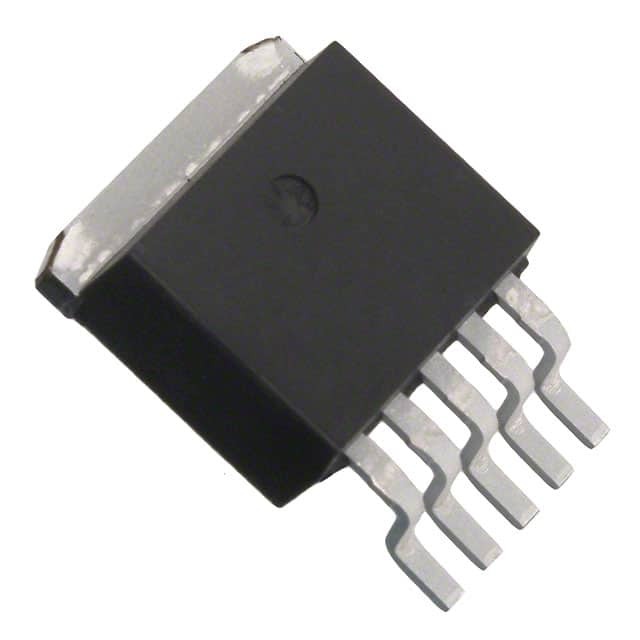

SPX29302T5-L/TR

SKU: 14740

Manufacturer: MaxLinear, Inc

LDO Regulator Pos 1.25V to 16V 3A 6-Pin(5+Tab) TO-263 T/R

62350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Adjustable
Output Voltage (V)	1.25 to 16
Maximum Output Current (A)	3
Maximum Input Voltage (V)	16
Maximum Dropout Voltage @ Current (V)	0.3@100mA
Reference Voltage (V)	1.277
Line Regulation	0.5%
Load Regulation	1%
Maximum Quiescent Current (mA)	60
Junction to Ambient	31.2°C/W
Junction to Case	3°C/W
Special Features	Reverse Battery Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TO-263
Pin Count	6
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.67(Max)
Package Width	9.65(Max)
PCB changed	5
Tab	Tab
