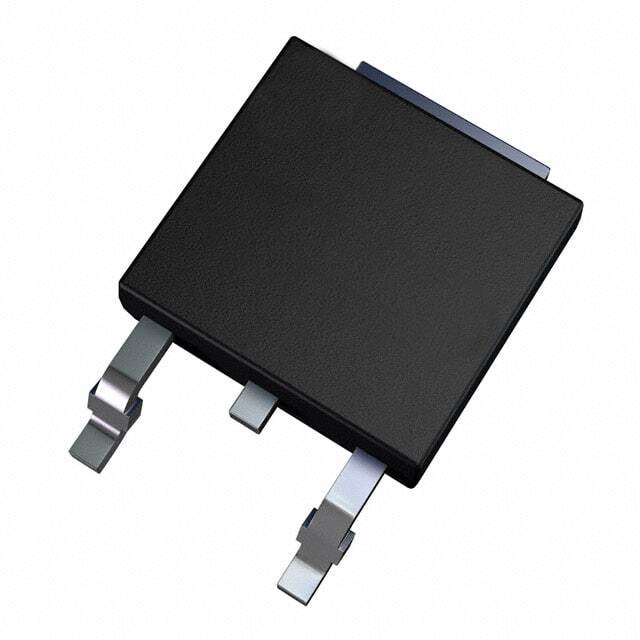

SP317V2-L/TR

SKU: 71305

Manufacturer: MaxLinear, Inc

Standard Regulator Pos 1.25V 1A 3-Pin(2+Tab) TO-252 T/R

43350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Adjustable
Output Voltage (V)	1.25(Min)
Maximum Output Current (A)	1
Maximum Input Voltage (V)	15
Maximum Dropout Voltage @ Current (V)	1.3@1A
Reference Voltage (V)	1.3
Line Regulation	0.04%/V
Load Regulation	0.4%
Junction to Case	10°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TO-252
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.39(Max)
Package Length	6.73(Max)
Package Width	6.1
PCB changed	2
Tab	Tab
