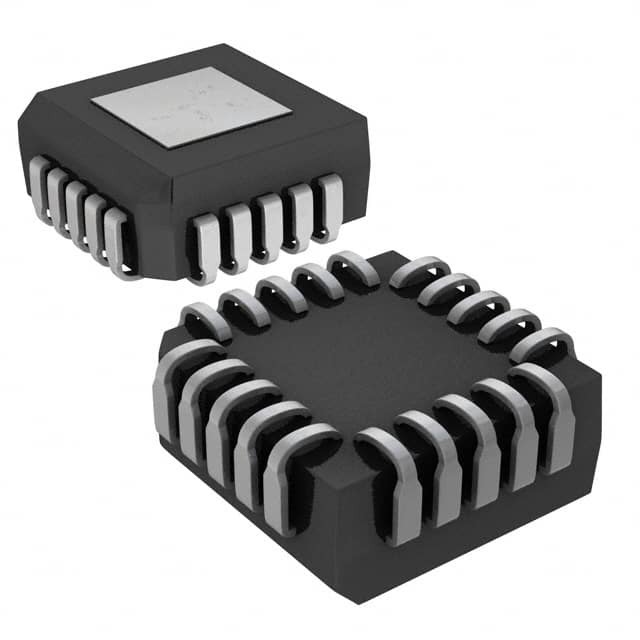

MX7534JP+

SKU: 129819

Manufacturer: Maxim Integrated

DAC 1-CH Segment 14-bit 20-Pin PLCC

1220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Segment
Resolution	14bit
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	1.5
Digital Interface Type	Parallel
Output Type	Current
Voltage Reference	External
Minimum Single Supply Voltage (V)	11.4
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	15.75
Power Supply Type	Single
Maximum Power Dissipation (mW)	800
Integral Nonlinearity Error	±2LSB
Full Scale Error	±8LSB
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Pin Count	20
Standard Package Method	LCC
Original Package	PLCC
Terminal Form	Surface Mount
Package Height	3.96(Max)
Package Length	9.04(Max)
Package Width	9.04(Max)
PCB changed	20
