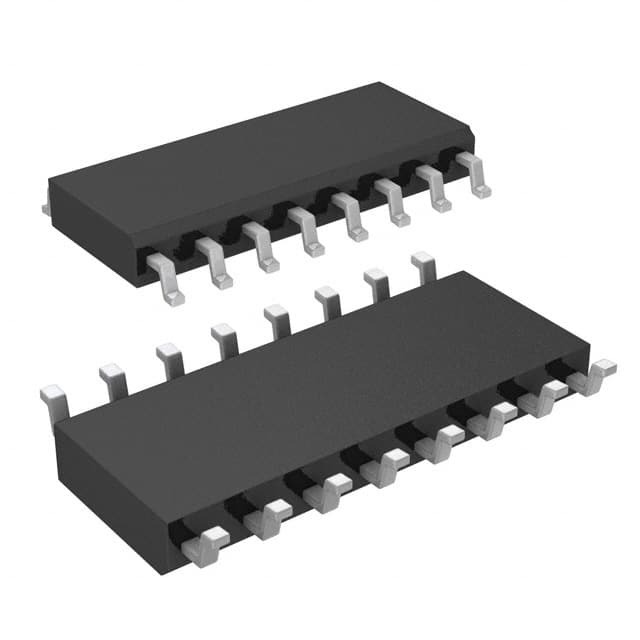

MX7524JCSE+T

SKU: 155298

Manufacturer: Maxim Integrated

DAC 1-CH Segment 8-bit 16-Pin SOIC N T/R

2420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Segment
Resolution	8bit
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	0.5
Digital Interface Type	Parallel
Output Type	Current
Voltage Reference	External
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	15
Power Supply Type	Single
Maximum Power Dissipation (mW)	450
Integral Nonlinearity Error	±0.5LSB
Full Scale Error	±3.5LSB
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Pin Count	16
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.37
Package Length	9.9
Package Width	3.9
PCB changed	16
