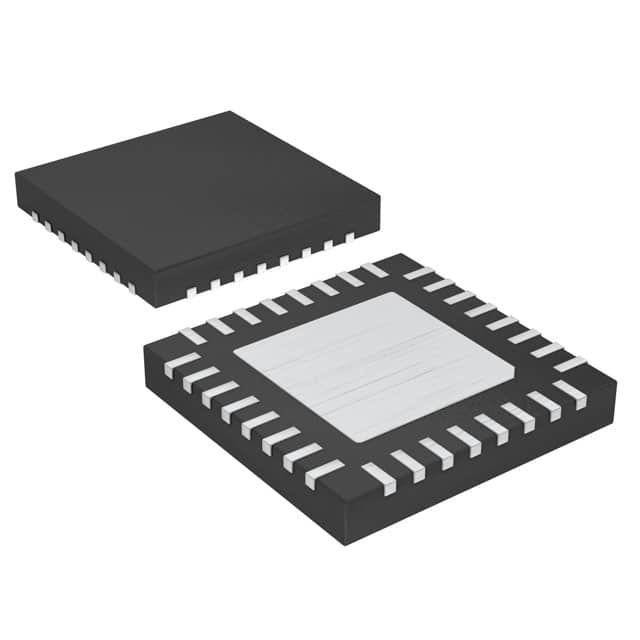

MAX9736AETJ+

SKU: 84032

Manufacturer: Maxim Integrated

Audio Amp Speaker 1-CH Mono/2-CH Stereo 35W Class-D 32-Pin TQFN EP Tube

50 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-D
Typical Gain Bandwidth Product (MHz)	3.5
THDN	0.04%@8Ohm@4W
Output Signal Type	Differential
Output Type	1-Channel Mono
Maximum Input Offset Voltage (mV)	1(Typ)
Minimum Dual Supply Voltage (V)	4.5
Typical Dual Supply Voltage (V)	5
Maximum Dual Supply Voltage (V)	5.5
Maximum Quiescent Current (mA)	45@20V/20@5V
Minimum Load Resistance (Ohm)	4
Power Supply Type	Dual
Typical Output Power x Channels @ Load (W)	35x1@4Ohm
Maximum Power Dissipation (mW)	2960
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Supplier Temperature Grade	Extended
Pin Count	32
Standard Package Method	QFN
Original Package	TQFN EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	7
Package Width	7
PCB changed	32
