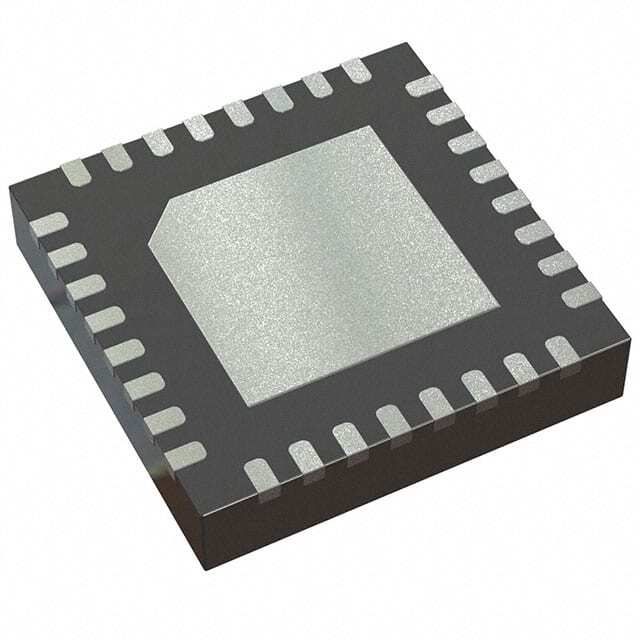

MAX9703ETJ+

SKU: 147779

Manufacturer: Maxim Integrated

Audio Amp Speaker 1-CH Mono 18W Class-D 32-Pin TQFN EP

90 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-D
THDN	0.07%@8Ohm@4W
Output Signal Type	Differential
Output Type	1-Channel Mono
Minimum Single Supply Voltage (V)	10
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	25
Maximum Quiescent Current (mA)	22@15V@-40C to 85C
Power Supply Type	Single
Typical Output Power x Channels @ Load (W)	18x1@8Ohm
Maximum Power Dissipation (mW)	2758.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Pin Count	32
Standard Package Method	QFN
Original Package	TQFN EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	5
PCB changed	32
