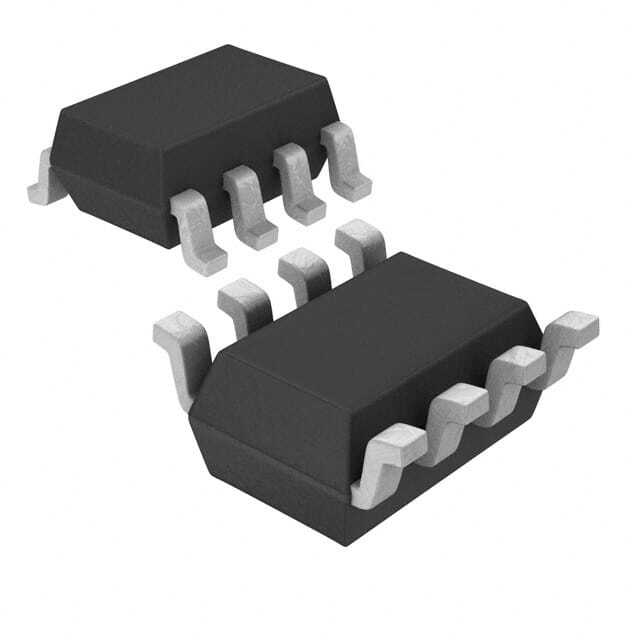

MAX9618AXA+T

SKU: 147777

Manufacturer: Maxim Integrated

Op Amp Dual Low Power Amplifier R-R I/O ±2.75V/5.5V 8-Pin SC-70 T/R

2460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Low Power Amplifier
Manufacturer Type	Low Power Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Input/Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	0.01@3.3V
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Minimum Dual Supply Voltage (V)	±0.9
Maximum Dual Supply Voltage (V)	±2.75
Maximum Input Offset Current (uA)	0.000005(Typ)@3.3V
Maximum Input Bias Current (uA)	0.00014@3.3V
Maximum Supply Current (mA)	0.156@3.3V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	245
Typical Slew Rate (V/us)	0.7@3.3V
Typical Input Noise Voltage Density (nV/rtHz)	42@3.3V
Typical Voltage Gain (dB)	160
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.1@3.3V
Minimum PSRR (dB)	119
Minimum CMRR (dB)	122
Minimum CMRR Range (dB)	>=115
Typical Gain Bandwidth Product (MHz)	1.5
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOT-323
Original Package	SC-70
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
PCB changed	8
