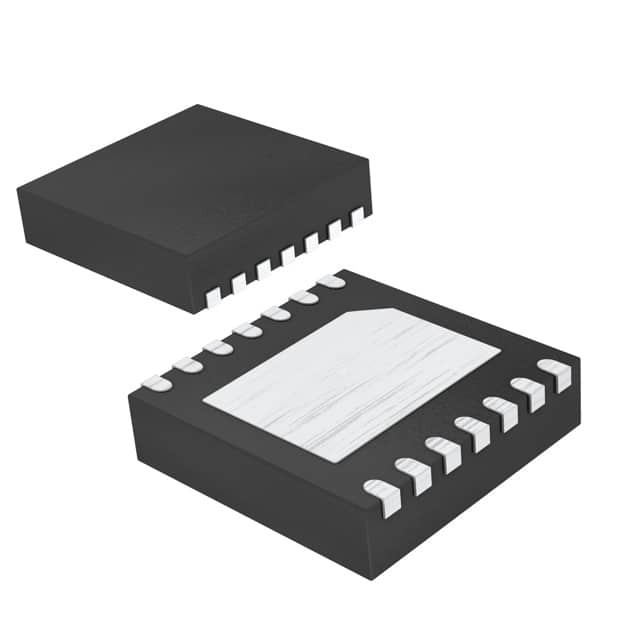

MAX8792ETD+T

SKU: 84014

Manufacturer: Maxim Integrated

Resonant Controllers 0V to 23.4V 15A 600kHz 14-Pin TDFN EP T/R

34520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Resonant Controllers
Control Method	Current
Topology	Buck
Number of PWM Outputs	1
Switching Frequency (kHz)	600
Output Current (mA)	15000
Process Technology	BiCMOS
Output Voltage (V)	0 to 23.4
Operating Supply Voltage (V)	4.5 to 5.5
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	1951
Adjustable Output	Yes
On/Off Pin	No
Synchronous Pin	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	TDFN EP
Pin Count	14
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.73
Package Length	3
Package Width	3
PCB changed	14
