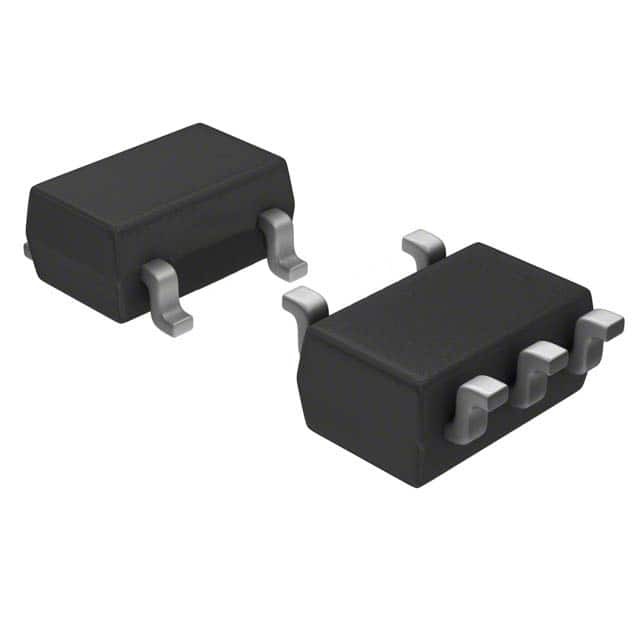

MAX870EUK+T

SKU: 112329

Manufacturer: Maxim Integrated

Charge Pump INV -1.4V to -5.5V 25mA 5-Pin SOT-23 T/R

770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Function	Inverting
Output Type	Adjustable
Output Voltage (V)	-1.4 to -5.5
Operating Supply Voltage-Min (V)	1.4
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	0.7(Typ)
Maximum Power Dissipation (mW)	571
Output Current (mA)	25
Switching Frequency (kHz)	125(Typ)
Efficiency (%)	90(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	5
Standard Package Method	SOT-23
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.63
PCB changed	5
