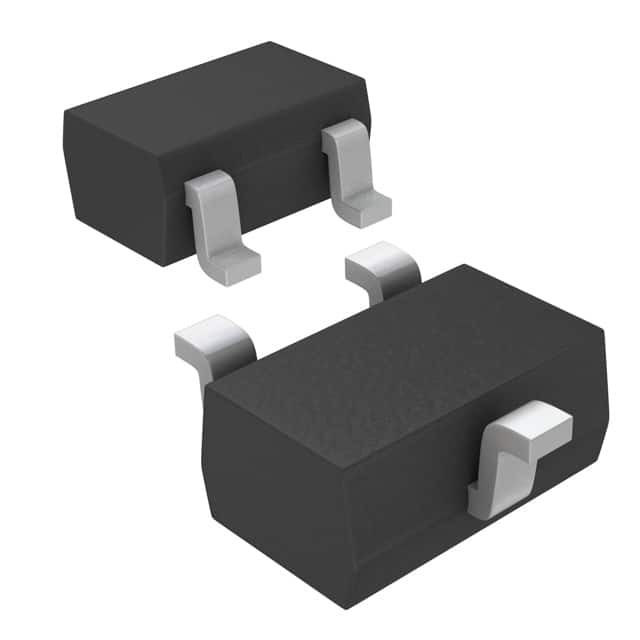

MAX803LEXR+T

SKU: 48767

Manufacturer: Maxim Integrated

Processor Supervisor 4.63V 1 Active Low/Open Drain 3-Pin SC-70 T/R

1960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Supervisors	1
Maximum Reset Active Time (ms)	240(Typ)
Output Driver	Active Low/Open Drain
Process Technology	CMOS
Minimum Reset Threshold Voltage (V)	4.56
Typical Reset Threshold Voltage (V)	4.63
Maximum Reset Threshold Voltage (V)	4.7
Monitored Voltage (V)	2.5
Operating Supply Voltage-Min (V)	1.2
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (uA)	24(Typ)
Maximum Power Dissipation (mW)	174
Power Fail Detection	No
Watchdog Timer	No
Manual Reset	No
Chip Enable Signals	No
Battery Backup Switching	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Type	Power Supply Monitor
Pin Count	3
Standard Package Method	SOT
Original Package	SC-70
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.2(Max)
Package Width	1.35(Max)
PCB changed	3
