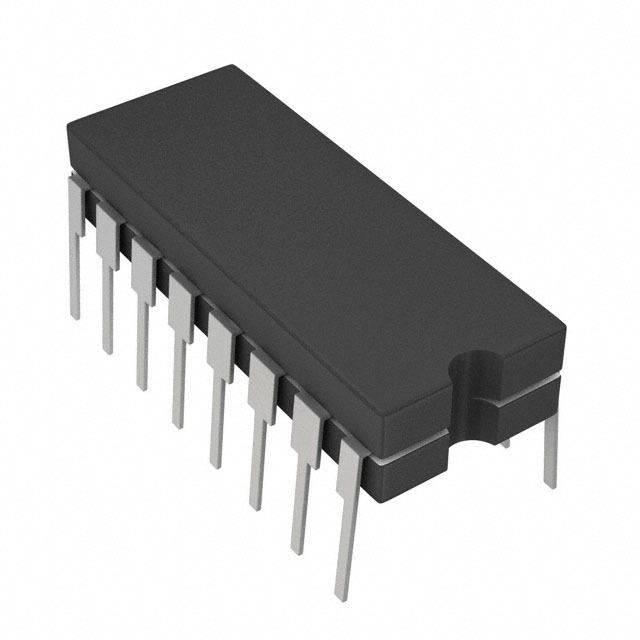

MAX691MJE/883B

SKU: 44919

Manufacturer: Maxim Integrated

Processor Supervisor 4.65V 1 Active High/Active Low/Push-Pull 16-Pin CDIP

1950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Number of Supervisors	1
Maximum Reset Active Time (ms)	70
Output Driver	Active High/Active Low/Push-Pull
Minimum Reset Threshold Voltage (V)	4.5
Typical Reset Threshold Voltage (V)	4.65
Maximum Reset Threshold Voltage (V)	4.75
Monitored Voltage (V)	4.65
Operating Supply Voltage-Min (V)	4.75
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (uA)	10000
Maximum Power Dissipation (mW)	600
Power Fail Detection	Yes
Watchdog Timer	Yes
Manual Reset	No
Chip Enable Signals	Yes
Battery Backup Switching	Yes
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Type	Voltage Supervisory
Pin Count	16
Standard Package Method	DIP
Original Package	CDIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	21.34(Max)
Package Width	7.87(Max)
PCB changed	16
