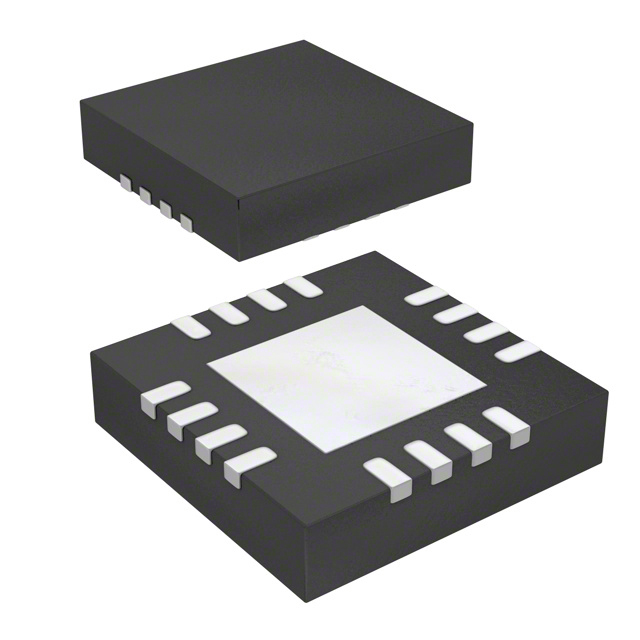

MAX5092AATE+

SKU: 55871

Manufacturer: Maxim Integrated

LDO Regulator Pos 1.5V to 9V3.3V 0.25A 16-Pin TQFN EP

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1.5
Output Type	Adjustable
Output Voltage (V)	1.5 to 9
Maximum Output Current (A)	0.25(Min)
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	72
Maximum Dropout Voltage @ Current (V)	1.6@250mA
Reference Voltage (V)	1.235(Typ)
Line Regulation	1.6mV/V(Typ)
Load Regulation	0.2mV/mA(Typ)
Maximum Power Dissipation (mW)	2666
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Original Package	TQFN EP
Pin Count	16
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	5
PCB changed	16
