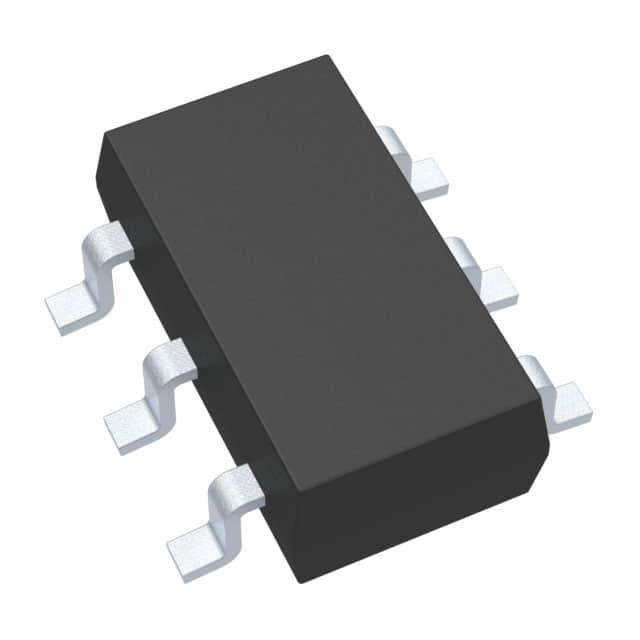

MAX5048BAUT+T

SKU: 119358

Manufacturer: Maxim Integrated

Driver 7.6A 1-OUT Low Side Inv/Non-Inv 6-Pin SOT-23 T/R

15370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Driver Type	Low Side
Driver Configuration	Inverting
Number of Drivers	1
Type	MOSFET
Number of Outputs	1
Maximum Rise Time (ns)	82(Typ)
Maximum Fall Time (ns)	12.5(Typ)
Maximum Propagation Delay Time (ns)	14(Typ)
Input Logic Compatibility	TTL
Operating Supply Voltage-Min (V)	4
Operating Supply Voltage-Max (V)	12.6
Maximum Supply Current (mA)	0.95(Typ)
Typical Input Low Threshold Voltage (V)	0.8(Max)
Typical Input High Threshold Voltage (V)	2.4(Min)
Peak Output Current (A)	7.6(Typ)
Output Resistance (Ohm)	2.2
Maximum Power Dissipation (mW)	727
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Matching Delay Between Inverting and Noninverting Inputs
Latch-Up Proof	No
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	SOT-23
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.63
PCB changed	6
