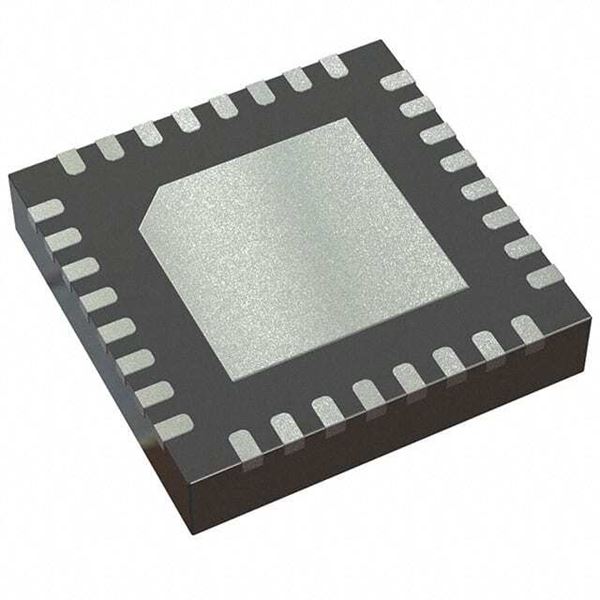

MAX4885ETJ+

SKU: 44905

Manufacturer: Maxim Integrated

Analog Switch/Analog Multiplexer Seven 2:1 32-Pin TQFN EP

870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	7
Number of Inputs per Chip	14
Number of Outputs per Chip	7
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	100(Typ)@5V
Maximum Turn-On Time (ns)	7000@5V@-40C to 85C
Maximum Turn-Off Time (ns)	100(Typ)@5V
Maximum Frequency (25°C) @ Vcc (MHz)	350(Typ)@5V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Low Level Output Current (mA)	16@5V@-40C to 85C
Maximum High Level Output Current (mA)	16@5V@-40C to 85C
Maximum On Resistance (Ohm)	20@5V
Maximum On Resistance Range (Ohm)	10 to 25
Propagation Delay Test Condition (pF)	250@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	1702
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Pin Count	32
Standard Package Method	QFN
Original Package	TQFN EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	5
PCB changed	32
