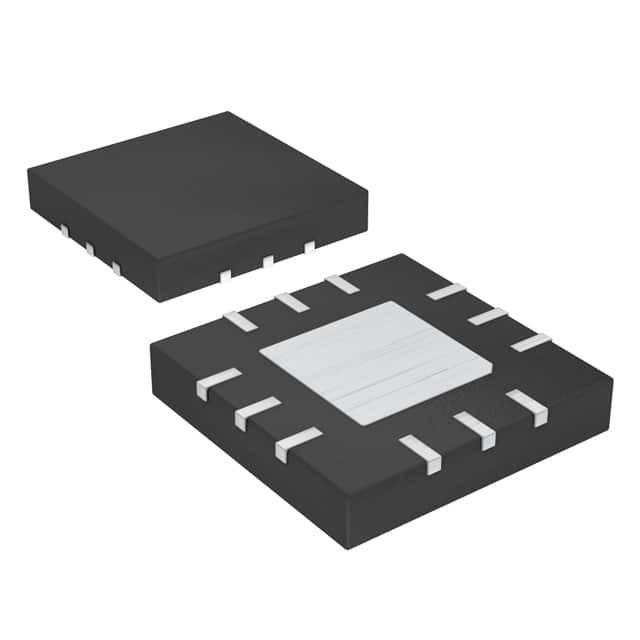

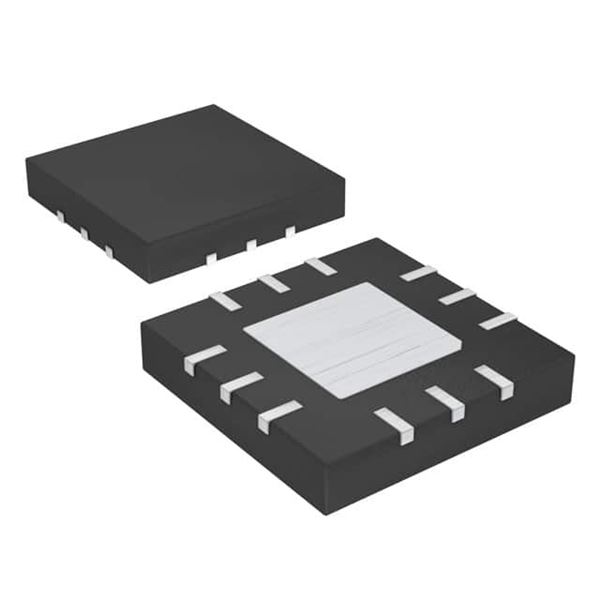

MAX4734EGC+T

SKU: 55863

Manufacturer: Maxim Integrated

Analog Multiplexer Single 4:1 12-Pin QFN EP T/R

226420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	1
Number of Inputs per Chip	4
Number of Outputs per Chip	1
Chip Enable Signals	Yes
Maximum Turn-On Time (ns)	30@1.8V
Maximum Turn-Off Time (ns)	25@1.8V
Maximum Frequency (25°C) @ Vcc (MHz)	90(Typ)@3V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	1.6
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.6
Typical Supply Current (mA)	0.000004@3.6V
Maximum Supply Current (mA)	0.001@3.6V@-40C to 85C
Maximum Low Level Output Current (mA)	150
Maximum High Level Output Current (mA)	150
Maximum On Resistance (Ohm)	2@1.8V
Maximum On Resistance Range (Ohm)	1 to 5
Power Supply Type	Single
Maximum Power Dissipation (mW)	1176
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	12
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.84
Package Length	3
Package Width	3
PCB changed	12
