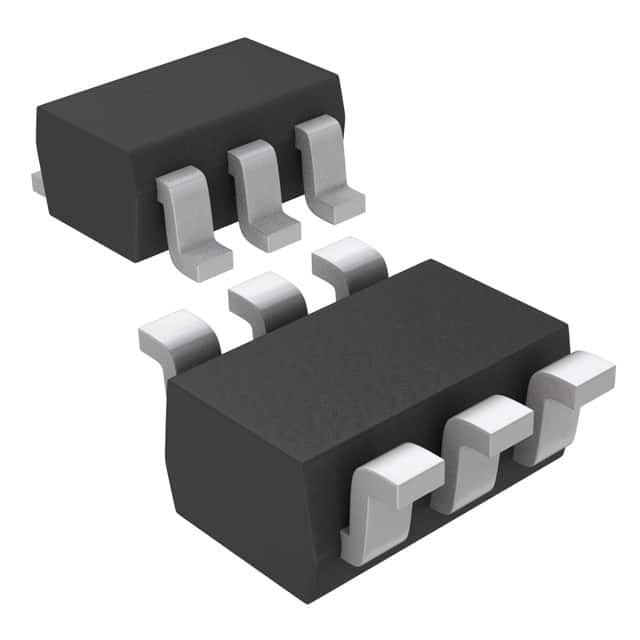

MAX4714EXT+

SKU: 87236

Manufacturer: Maxim Integrated

Analog Switch Single SPDT 6-Pin SC-70

680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Single SPDT
Switch Architecture	SPDT
Number of Channels per Chip	1
Number of Inputs per Chip	1
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	25@1.8V
Maximum Turn-Off Time (ns)	15@1.8V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	1.6
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.6
Typical Supply Current (mA)	0.00004@3.6V
Maximum Supply Current (mA)	0.0002@3.6V
Maximum Low Level Output Current (mA)	150
Maximum High Level Output Current (mA)	150
Maximum On Resistance (Ohm)	2.5@1.8V
Maximum On Resistance Range (Ohm)	1 to 5
Power Supply Type	Single
Maximum Power Dissipation (mW)	247
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Pin Count	6
Standard Package Method	SOT-323
Original Package	SC-70
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.2(Max)
Package Width	1.35(Max)
PCB changed	6
