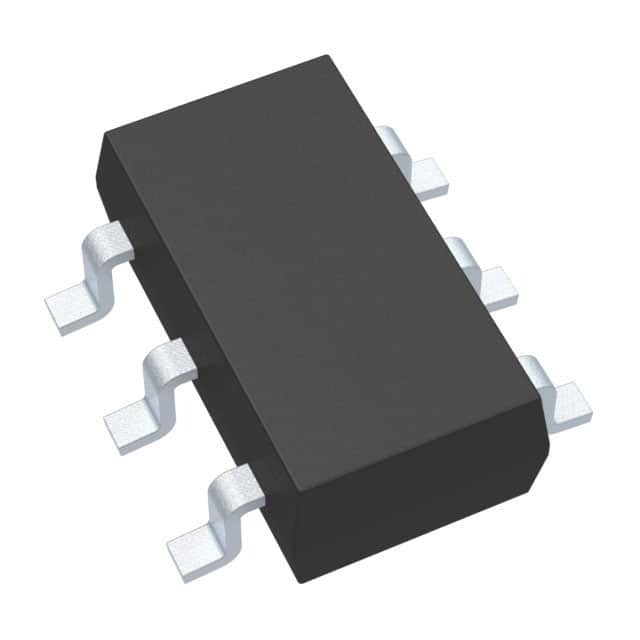

MAX4675EUT-T

SKU: 154845

Manufacturer: Maxim Integrated

Analog Switch Single SPST 6-Pin SOT-23 T/R

680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Single SPST
Switch Architecture	SPST
Number of Channels per Chip	1
Number of Inputs per Chip	1
Number of Outputs per Chip	1
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	700@4.5V
Maximum Turn-Off Time (ns)	150@4.5V
Maximum Frequency (25°C) @ Vcc (MHz)	250(Typ)@±5V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Minimum Dual Supply Voltage (V)	±2.7
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±5.5
Typical Supply Current (mA)	0.000002@5.5V
Maximum Supply Current (mA)	0.001@5.5V
Maximum Low Level Output Current (mA)	100
Maximum High Level Output Current (mA)	100
Maximum On Resistance (Ohm)	5.75@4.5V
Maximum On Resistance Range (Ohm)	5 to 10
Power Supply Type	Single
Maximum Power Dissipation (mW)	691
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	SOT-23
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.63
PCB changed	6
