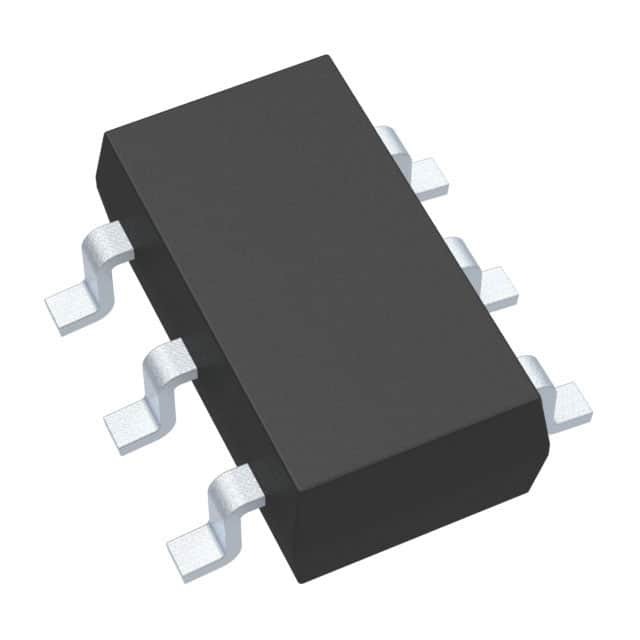

MAX4625EUT+T

SKU: 90985

Manufacturer: Maxim Integrated

Analog Switch Single SPDT 6-Pin SOT-23 T/R

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Single SPDT
Switch Architecture	SPDT
Number of Channels per Chip	1
Number of Inputs per Chip	1
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	80@3.6V
Maximum Turn-Off Time (ns)	80@3.6V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	0.01@5.5V@-40C to 85C
Maximum Low Level Output Current (mA)	200
Maximum High Level Output Current (mA)	200
Maximum On Resistance (Ohm)	2@2.7V
Maximum On Resistance Range (Ohm)	1 to 5
Power Supply Type	Single
Maximum Power Dissipation (mW)	571
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	6
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.63
PCB changed	6
