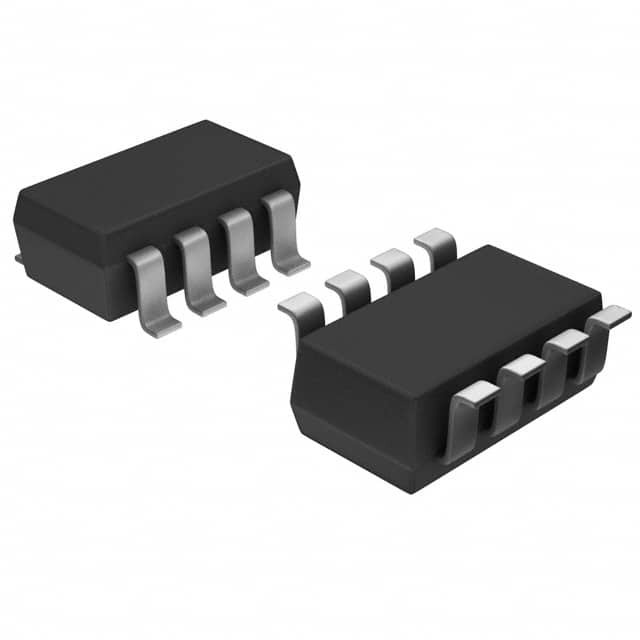

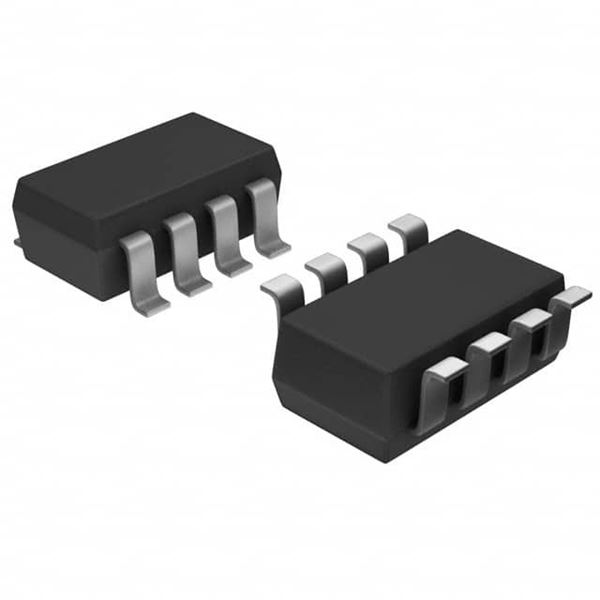

MAX4541EKA-T

SKU: 126362

Manufacturer: Maxim Integrated

Analog Switch Dual SPST 8-Pin SOT-23 T/R

1710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Dual SPST
Switch Architecture	SPST
Number of Channels per Chip	2
Number of Inputs per Chip	2
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	400@3.6V
Maximum Turn-Off Time (ns)	125@3.6V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	12
Typical Supply Current (mA)	0.0000001@5.5V@-40C to 85C
Maximum Supply Current (mA)	0.001@5.5V@-40C to 85C
Maximum Low Level Output Current (mA)	10
Maximum High Level Output Current (mA)	10
Maximum On Resistance (Ohm)	125@3V
Maximum On Resistance Range (Ohm)	100 to 150
Power Supply Type	Single
Maximum Power Dissipation (mW)	421
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOT-23
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.63
PCB changed	8
