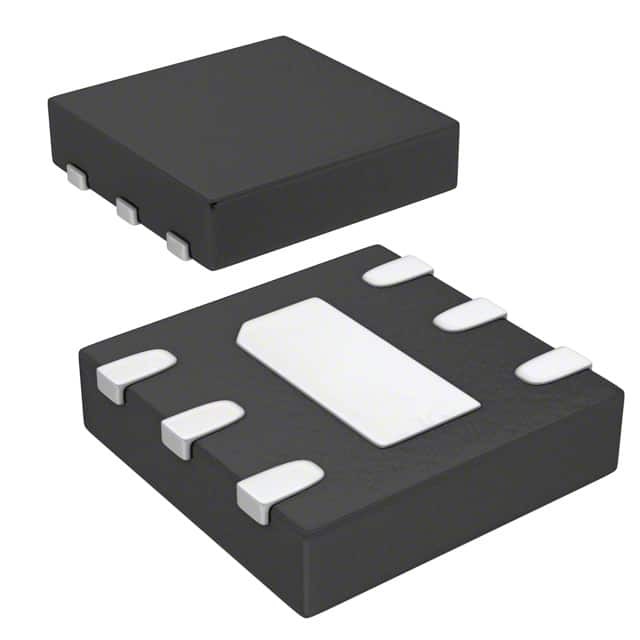

MAX44009EDT+T

SKU: 48686

Manufacturer: Maxim Integrated

Light to Digital Ambient Light Sensor Digital 1.8V/2.5V/3.3V 6-Pin UTDFN EP T/R

7150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	No
PPAP	No
Sensor Type	Light to Digital
Lux Range (lux)	0.045 to 188000
Maximum Clock Frequency (kHz)	400
Interface Type	Serial (2-Wire, I2C, SMBus)
Output Type	Digital
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Typical Supply Current (uA)	0.65
Maximum Power Dissipation (mW)	953
Operating Temperature-Min	-40
Operating Temperature-Max	85
Linearity	No
Packing Method	Tape and Reel
Original Package	UTDFN EP
Pin Count	6
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.6
Package Length	2
Package Width	2
