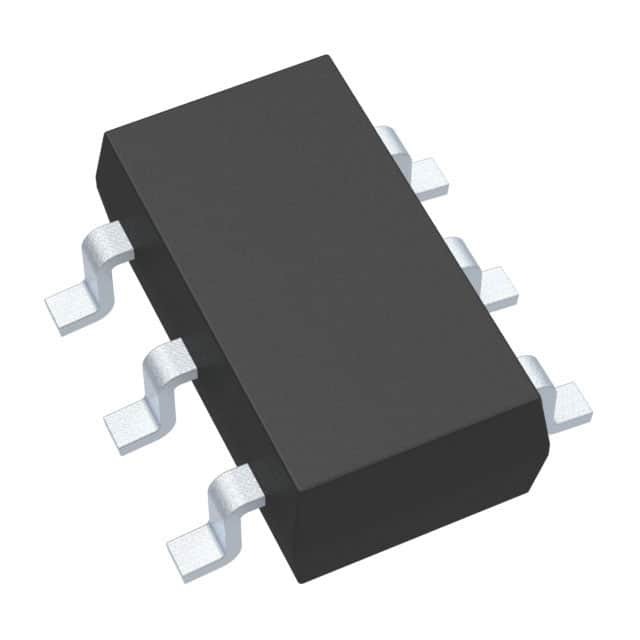

MAX4173FEUT+T

SKU: 48683

Manufacturer: Maxim Integrated

SP Amp Current Sense Amp Single 28V 6-Pin SOT-23 T/R

15560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Current Sense Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	33.98(Typ)
Minimum CMRR Range (dB)	85 to 95
Minimum CMRR (dB)	90(Typ)
Minimum PSRR (dB)	60
Typical Output Current (mA)	20(Max)
Operating Supply Voltage-Max (V)	28
Maximum Supply Voltage Range (V)	20 to 30
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	28
Maximum Input Bias Current (uA)	50@28V@-40C to 85C
Maximum Supply Current (mA)	0.42(Typ)@28V
Maximum Power Dissipation (mW)	696
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	6
Standard Package Method	SOT-23
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.63
PCB changed	6
