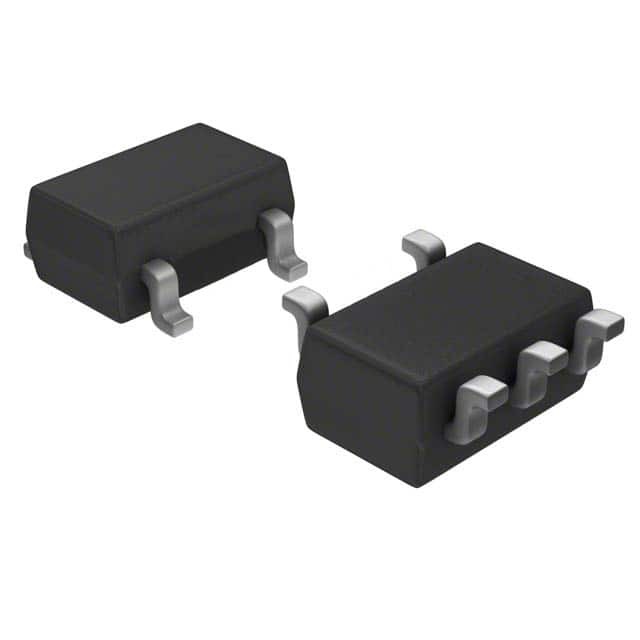

MAX4012EUK+T

SKU: 69865

Manufacturer: Maxim Integrated

Op Amp Single High Speed Amplifier R-R O/P ±5.5V/11V 5-Pin SOT-23 T/R

1170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	High Speed Amplifier
Manufacturer Type	High Speed Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Maximum Input Offset Voltage (mV)	4(Typ)@5V
Minimum Single Supply Voltage (V)	3.15
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	11
Minimum Dual Supply Voltage (V)	±1.575
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.5
Maximum Input Offset Current (uA)	0.1(Typ)@5V
Typical Input Bias Current (uA)	5.4@5V
Maximum Input Bias Current (uA)	20@5V@-40C to 85C
Maximum Quiescent Current (mA)	5.5(Typ)@5V
Typical Output Current (mA)	120@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	571
Typical Slew Rate (V/us)	600@5V
Typical Input Noise Voltage Density (nV/rtHz)	10@5V
Typical Voltage Gain (dB)	61
Typical Noninverting Input Current Noise Density (pA/rtHz)	1.3@5V
Minimum PSRR (dB)	46
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Settling Time (ns)	45
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	5
Standard Package Method	SOT-23
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.63
PCB changed	5
