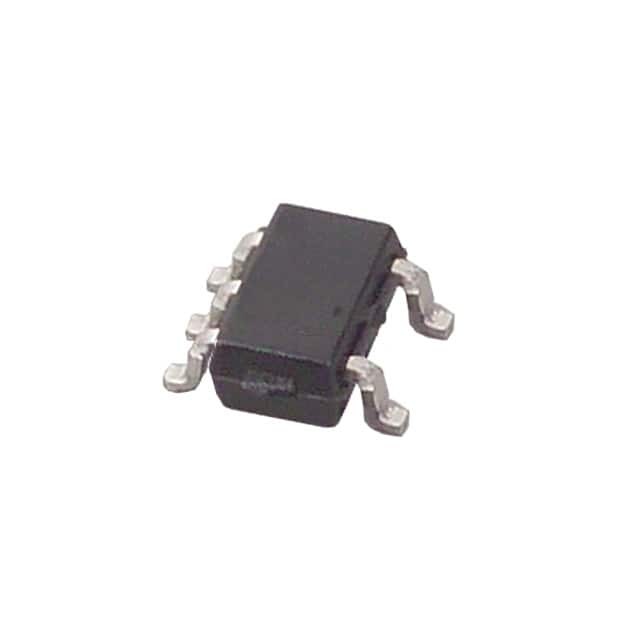

MAX3370EXK+T

SKU: 69856

Manufacturer: Maxim Integrated

Voltage Level Translator 1-CH Bidirectional 5-Pin SC-70 T/R

830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Logic Function	Voltage Level Translator
Channel Type	Bidirectional
Number of Channels	1
Maximum Propagation Delay Time @ Maximum CL (ns)	400@1.6V to 5.5V@2.5V to 5.5V
Absolute Propagation Delay Time (ns)	800
Process Technology	BiCMOS
Output Type	3-State
Maximum Low Level Output Current (mA)	1
Maximum High Level Output Current (mA)	-0.02
Operating Supply Voltage-Min (V)	1.6/2.5
Typical Operating Supply Voltage (V)	1.8/3.3
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (mA)	<0.1
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Pin Count	5
Original Package	SC-70
Standard Package Method	SOT-323
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
PCB changed	5
