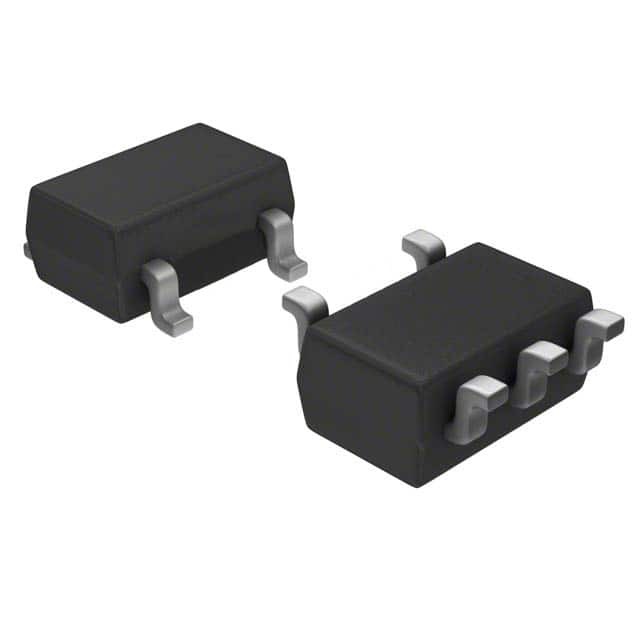

MAX3280EAUK+T

SKU: 112233

Manufacturer: Maxim Integrated

Single Receiver RS-422/RS-485 5-Pin SOT-23 T/R

26440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Function	Line Receiver
Data Rate	52Mbps(Min)
Receiver Communication Type	RS-422
Interface Standards	RS-422
Data Transmission Topology	Multidrop
Number of Receivers	1
Receiver Signal Type	Differential
Process Technology	BiCMOS
Number of Receivers per Line	10@RS-422
Driving Mode	3-State
Number of Receiver Enables	0
Operating Temperature-Min	-40
Operating Temperature-Max	125
Power Supply Type	Dual
Minimum Dual Supply Voltage (V)	3
Typical Dual Supply Voltage (V)	3.3
Maximum Dual Supply Voltage (V)	5.5
Maximum Supply Current (mA)	15
Supplier Temperature Grade	Automotive
Isolation	No
Packing Method	Tape and Reel
Pin Count	5
Original Package	SOT-23
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.63
PCB changed	5
