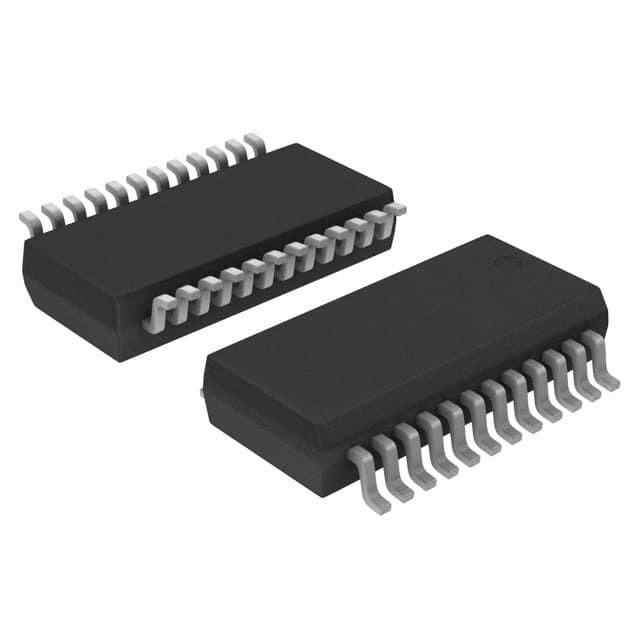

MAX3107EAG+T Maxim Integrated

MAX3107EAG+T

SKU: 90936

Manufacturer: Maxim Integrated

UART 1-CH 128byte FIFO 2.5V/3.3V 24-Pin SSOP T/R

Download sample

Request Free Samples

2520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	No
PPAP	No
Number of Channels per Chip	1
Transmit FIFO (byte)	128
Receive FIFO (byte)	128
Number of GPIOs	4
Maximum Data Rate	24Mbps
Transmitter and Receiver FIFO Counter	No
Standard Supported	RS-485
Process Technology	BiCMOS
Operating Supply Voltage-Min (V)	2.35
Operating Supply Voltage-Max (V)	3.6
Typical Operating Supply Voltage (V)	3.3
Maximum Supply Current (mA)	1.3
Maximum Power Dissipation (mW)	988
Operating Temperature-Min	-40
Operating Temperature-Max	85
DMA Support	No
False Start Bit Detection	No
Automatic Software Flow Control	Yes
Supplier Temperature Grade	Extended
Automatic Hardware Flow Control	Yes
Packing Method	Tape and Reel
Pin Count	24
Original Package	SSOP
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.78(Max)
Package Length	8.33(Max)
Package Width	5.38(Max)
PCB changed	24
