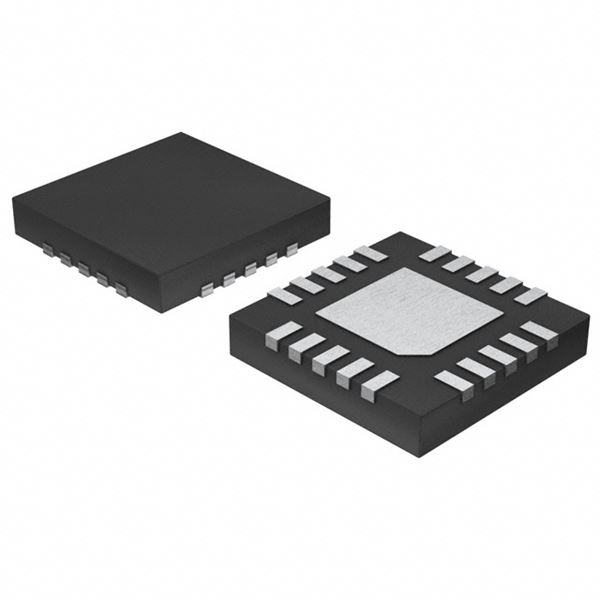

MAX3002ETP+

SKU: 83899

Manufacturer: Maxim Integrated

Voltage Level Translator 8-CH Bidirectional 20-Pin TQFN EP

1470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	No
PPAP	No
Logic Function	Voltage Level Translator
Channel Type	Bidirectional
Number of Channels	8
Maximum Propagation Delay Time @ Maximum CL (ns)	20@1.2V to 5.5V@1.65V to 5.5V
Absolute Propagation Delay Time (ns)	20
Process Technology	BiCMOS
Output Type	3-State
Maximum Low Level Output Current (mA)	0.02
Maximum High Level Output Current (mA)	-0.02
Operating Supply Voltage-Min (V)	1.2/1.65
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (mA)	0.01
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Pin Count	20
Original Package	TQFN EP
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	5
PCB changed	20
