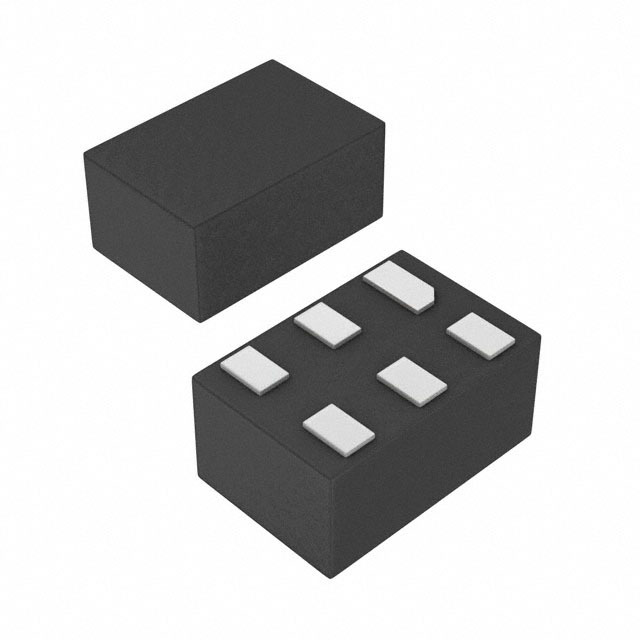

MAX2659ELT+T

SKU: 119305

Manufacturer: Maxim Integrated

GPS Amp Single Low Noise 1.75GHz 3.6V 6-Pin UDFN T/R

7900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Manufacturer Type	Low Noise Amplifier
Product Category	Chip
Number of Channels per Chip	1
Process Technology	SiGe
Maximum Operating Frequency (MHz)	1750
Maximum Gain (dB)	20.5(Typ)@1575.42MHz
Typical Noise Figure (dB)	0.8@1575.42MHz
Maximum Reverse Isolation (dB)	32(Typ)@1575.42MHz
Maximum Input Return Loss (dB)	15(Typ)@1575.42MHz
Maximum Output Return Loss (dB)	25(Typ)@1575.42MHz
Minimum Single Supply Voltage (V)	1.6
Typical Single Supply Voltage (V)	2.85
Maximum Single Supply Voltage (V)	3.6
Maximum Supply Current (mA)	4.1(Typ)@2.85V
Power Supply Type	Single
Maximum Power Dissipation (mW)	167
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	UDFN
Pin Count	6
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	1.5
Package Width	1
PCB changed	6
