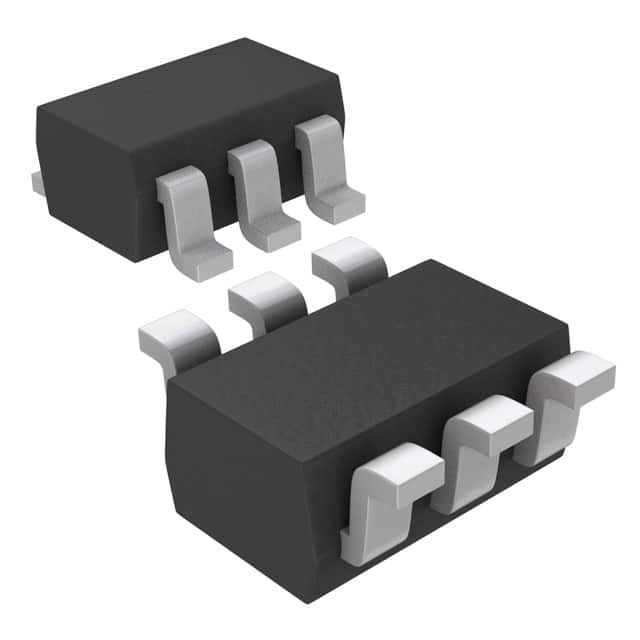

MAX1853EXT+T

SKU: 112189

Manufacturer: Maxim Integrated

Charge Pump INV -2.5V to -5.5V 30mA 6-Pin SC-70 T/R

2900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Function	Inverting
Output Type	Adjustable
Output Voltage (V)	-2.5 to -5.5
Operating Supply Voltage-Min (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	0.32
Maximum Power Dissipation (mW)	245
Output Current (mA)	30(Max)
Switching Frequency (kHz)	270
Efficiency (%)	99.9(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	SOT-323
Original Package	SC-70
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.2(Max)
Package Width	1.35(Max)
PCB changed	6
