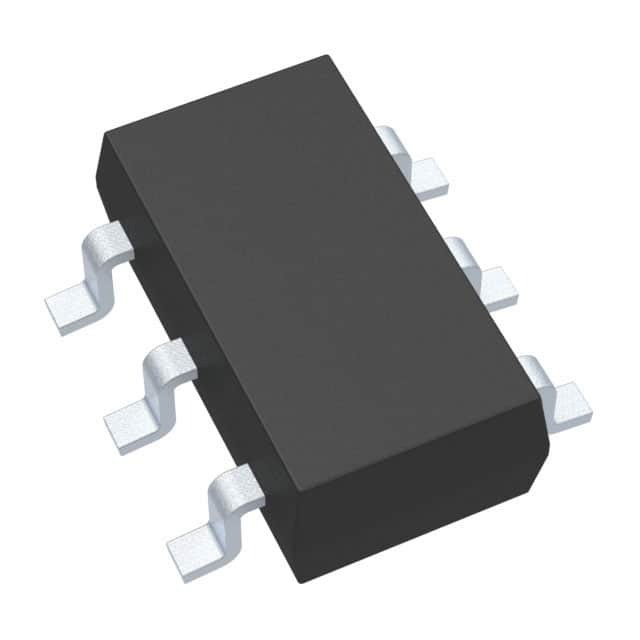

MAX1818EUT25#TG16

SKU: 119289

Manufacturer: Maxim Integrated

LDO Regulator Pos 1.25V to 5V2.5V 0.5A 6-Pin SOT-23 T/R

74430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	2.5
Maximum Output Current (A)	0.5(Min)
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.36@500mA
Reference Voltage (V)	1.25
Line Regulation	0%/V(Typ)
Load Regulation	0.4%(Typ)
Maximum Quiescent Current (mA)	0.25
Maximum Power Dissipation (mW)	800
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	6
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.63
PCB changed	6
