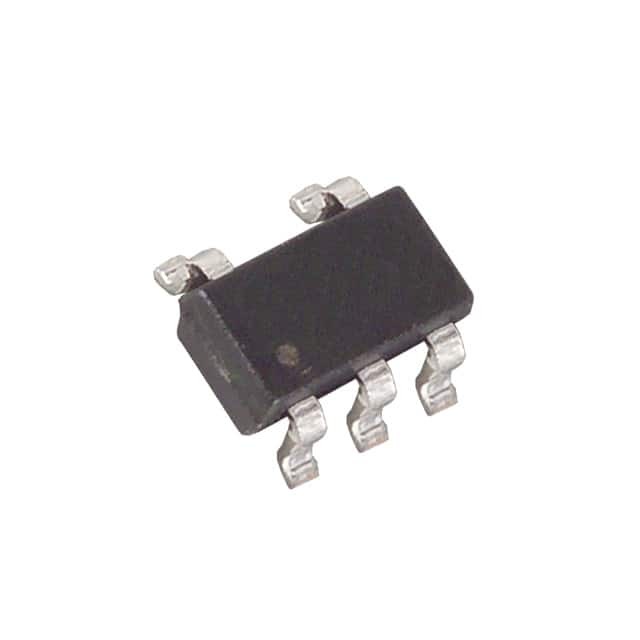

MAX1735EUK25+T

SKU: 83868

Manufacturer: Maxim Integrated

LDO Regulator Neg -1.25V to -5.5V-2.5V -0.2A 5-Pin SOT-23 T/R

30710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Negative
Accuracy (%)	±1
Output Type	Adjustable
Output Voltage (V)	-1.25 to -5.5
Maximum Output Current (A)	-0.2(Min)
Minimum Input Voltage (V)	-6.5
Maximum Input Voltage (V)	-2.5
Maximum Dropout Voltage @ Current (V)	0.24@-200mA
Reference Voltage (V)	-1.25
Line Regulation	0%/V(Typ)
Load Regulation	0.004%/mA(Typ)
Maximum Power Dissipation (mW)	571
Special Features	Shutdown
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.63
PCB changed	5
