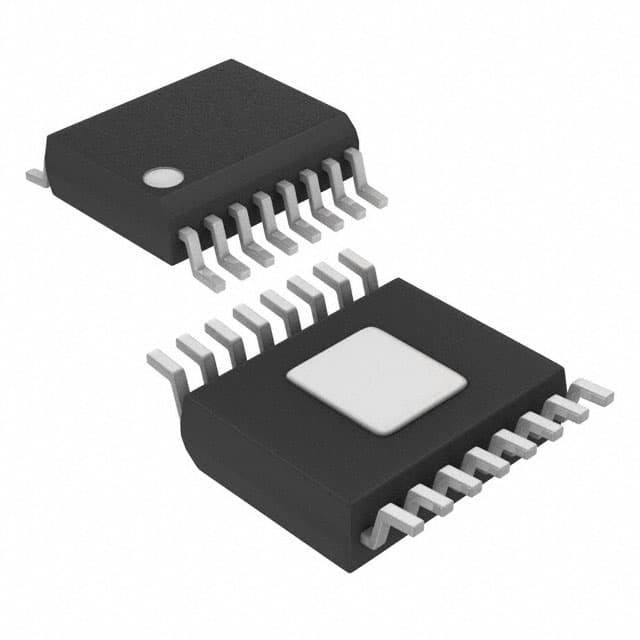

MAX15046BAEE+

SKU: 119272

Manufacturer: Maxim Integrated

DC/DC Cntrlr Single-OUT Step Down 1000kHz 16-Pin QSOP EP

1340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.6 to 34
Maximum Output Current (A)	25
Maximum Switching Frequency (kHz)	1000
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	40
Maximum Power Dissipation (mW)	1818.2
Minimum Switching Frequency (kHz)	100
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Pin Count	16
Standard Package Method	SOP
Original Package	QSOP EP
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	4.98(Max)
Package Width	3.99(Max)
PCB changed	16
