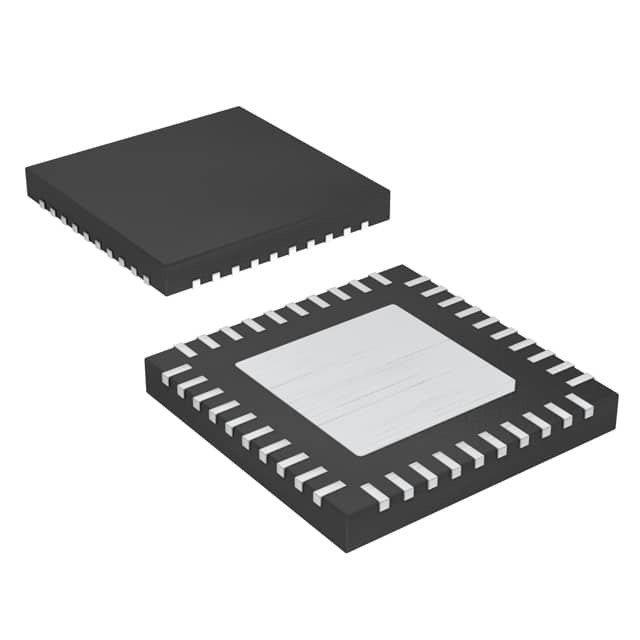

MAX11300GTL+

SKU: 41464

Manufacturer: Maxim Integrated

Data Acquisition System 20 ADC 20 DAC 12-Bit 40-Pin TQFN EP

1120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.g
Part Status	Active
Automotive	No
PPAP	No
Converter Type	ADC
Resolution (bit)	12
Data Rate (Msps)	0.4
Power Supply Type	Analog and Digital
Number of ADCs	20
Number of DACs	20
Digital Interface Type	Serial (4-Wire, SPI, QSPI)
Maximum Settling Time (us)	40(Typ)
Output Voltage Range (V)	0 to 10
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Integral Nonlinearity Error	±2.5LSB
Signal to Noise Ratio (dB)	72(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	105
Full Scale Error	±12LSB
Supplier Temperature Grade	Automotive
Original Package	TQFN EP
Pin Count	40
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.73
Package Length	6
Package Width	6
PCB changed	40
