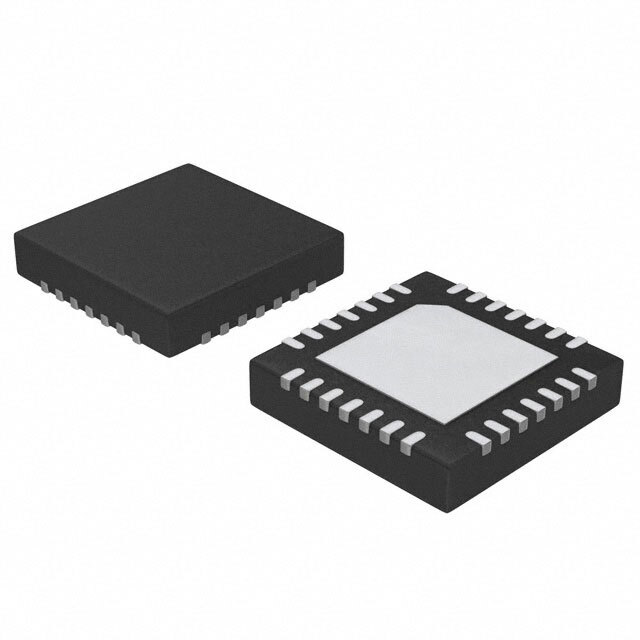

MAX11128ATI+

SKU: 55772

Manufacturer: Maxim Integrated

16-Channel Single ADC SAR 1Msps 12-bit Serial 28-Pin TQFN EP

3850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	12bit
Number of ADCs	1
Number of Input Channels	8
Sampling Rate	1Msps
Digital Interface Type	Serial (3-Wire, SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	±1.5V/±3V
Minimum Single Supply Voltage (V)	2.35
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.6
Typical Power Dissipation (mW)	5.4
Maximum Power Dissipation (mW)	2758
Integral Nonlinearity Error	±1LSB
Full Scale Error	±4LSB
Signal to Noise Ratio	72.6dB(Typ)
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Pin Count	28
Standard Package Method	QFN
Original Package	TQFN EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	5
PCB changed	28
