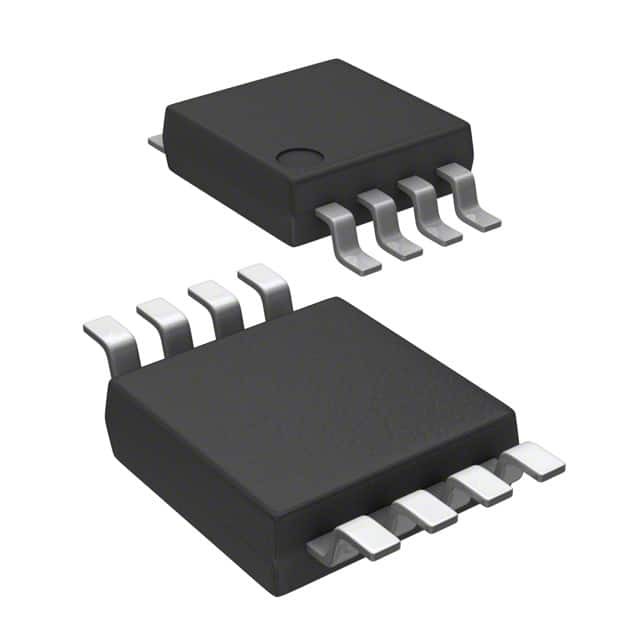

DS4412U+

SKU: 157763

Manufacturer: Maxim Integrated

DAC 2-CH 4-bit 8-Pin uMAX

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Converter Type	General Purpose
Resolution	4bit
Number of DAC Channels	2
Number of Outputs per Chip	2
Digital Interface Type	Serial (I2C)
Output Type	Current
Output Polarity	Unipolar
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Integral Nonlinearity Error	1LSB
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Pin Count	8
Standard Package Method	MSOP
Original Package	uMAX
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
