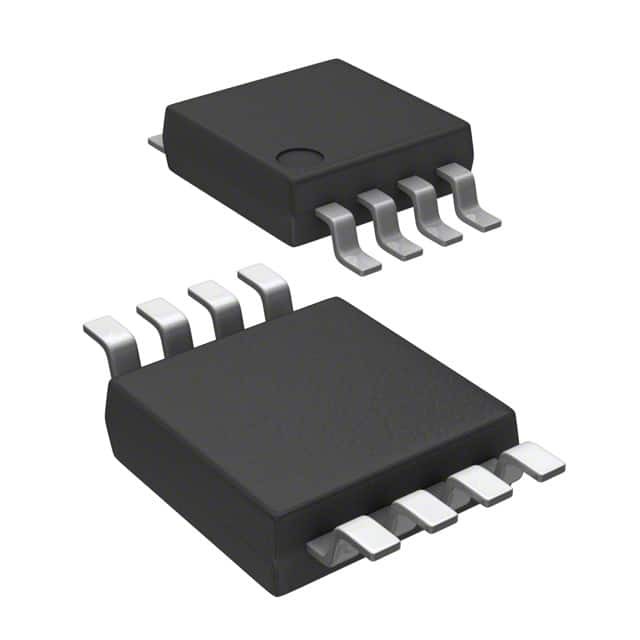

DS1100U-125+

SKU: 61163

Manufacturer: Maxim Integrated

Active Tapped Delay Line 5 TAP 1-IN 25ns ABS 125ns MAX 8-Pin uMAX

2050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Active Tapped Delay Line
Number of Taps	5
Number of Independent Delay Inputs	1
Absolute Increment (ns)	25
Maximum Delay Time (ns)	125
Maximum Delay Time Range (ns)	100 to 200
Delay to First Tap (ns)	25
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Pin Count	8
Standard Package Method	MSOP
Original Package	uMAX
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
