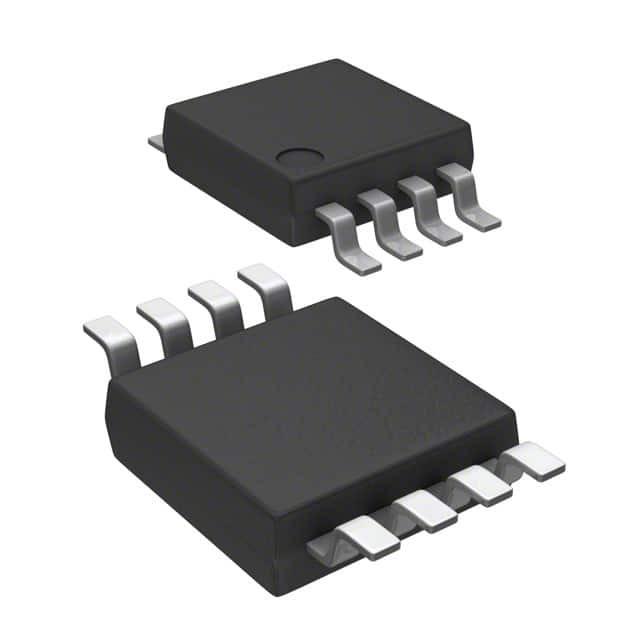

DS1099U-WA+

SKU: 124696

Manufacturer: Maxim Integrated

Silicon Oscillator 0.000002MHz/ 1.048MHz- CMOS/TTL/Squarewave 8-Pin uMAX

2940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Silicon Oscillator
Number of Outputs	2
Manual Reset	No
User Programming Method	No
Standard Frequency (MHz)	0.000002
Typical Frequency Temperature Coefficient	100ppm/°C(Max)
Typical Frequency Line Regulation	3300ppm/V
Maximum Symmetry (%)	55
Output Level	CMOS
Output Signal Type	Single-Ended
Operating Supply Voltage-Min (V)	2.7
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	3.3
Maximum Supply Current (mA)	0.323(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Standard Package Method	MSOP
Pin Count	8
Original Package	uMAX
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
