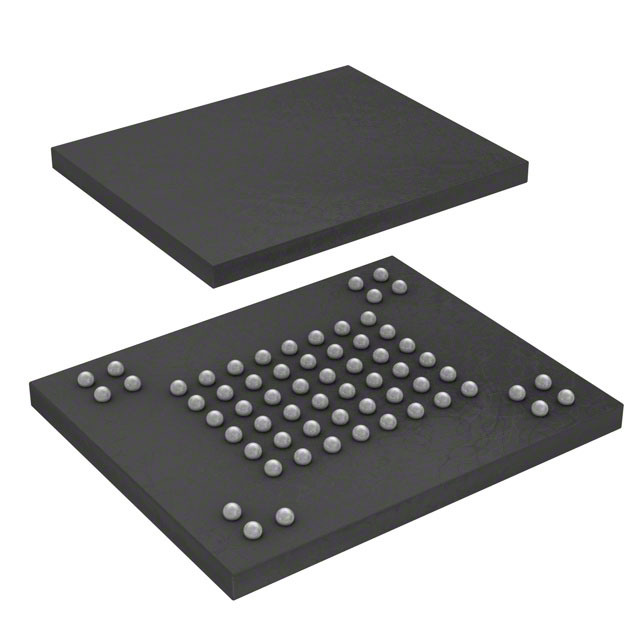

MX60LF8G18AC-XKI

SKU: 80227

Manufacturer: Macronix International

NAND Flash Parallel 3.3V 8G-bit 1G x 8 25ns 63-Pin VFBGA

2680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991b.1.a.
Part Status	Active
HTS	8542.32.00.71
Automotive	No
PPAP	No
Cell Type	NAND
Chip Density (bit)	8G
Architecture	Non Sectored
Boot Block	No
Address Bus Width (bit)	12
Page Size	2Kbyte
Number of Bits/Word (bit)	8
Number of Words	1G
Programmability	Yes
Timing Type	Asynchronous
Max. Access Time (ns)	25
Maximum Erase Time (s)	0.0035/Block
Maximum Programming Time (ms)	0.006/Page
Interface Type	Parallel
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	2.7 to 3.6
Operating Current (mA)	30
Program Current (mA)	30
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Command Compatible	Yes
ECC Support	Yes
Support of Page Mode	Yes
Minimum Endurance (Cycles)	100000
Original Package	VFBGA
Pin Count	63
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.55(Min)
Package Length	11
Package Width	9
PCB changed	63
