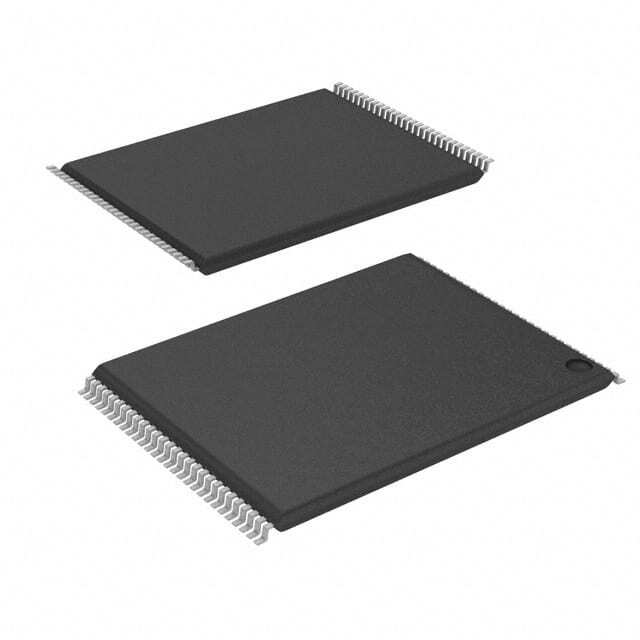

MX29GL256FUT2I-11G

SKU: 144000

Manufacturer: Macronix International

NOR Flash Parallel 3.3V 256M-bit 32M x 8/16M x 16 110ns 56-Pin TSOP-I

1870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.1.a
Part Status	Active
HTS	8542.32.00.71
Automotive	No
PPAP	No
Cell Type	NOR
Chip Density (bit)	256M
Architecture	Sectored
Boot Block	Yes
Block Organization	Symmetrical
Location of Boot Block	Bottom
Address Bus Width (bit)	24
Sector Size	128Kbyte x 256
Page Size	8Words/16byte
Number of Bits/Word (bit)	8/16
Number of Words	32M/16M
Programmability	Yes
Timing Type	Asynchronous
Max. Access Time (ns)	110
Maximum Erase Time (s)	300/Chip
Maximum Page Access Time (ns)	30
Maximum Programming Time (ms)	350000/Chip
OE Access Time (ns)	30
Interface Type	Parallel
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	3 to 3.6
Operating Current (mA)	100
Page Read Current (mA)	20
Program Current (mA)	30
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Command Compatible	Yes
ECC Support	No
Support of Page Mode	Yes
Original Package	TSOP-I
Pin Count	56
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Length	14
Package Width	18.4
PCB changed	56
