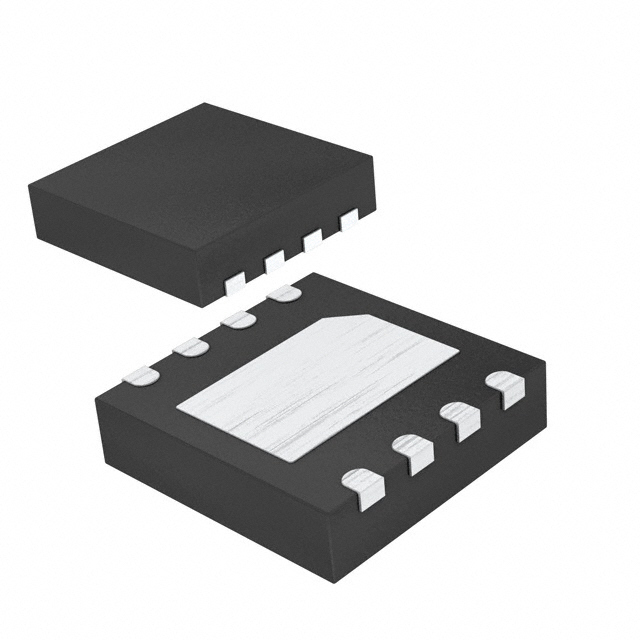

MX25R3235FZNIL0

SKU: 73215

Manufacturer: Macronix International

NOR Flash Serial (SPI, Dual SPI, Quad SPI) 1.8V/3.3V 32M-bit 32M/16M/8M x 1/2-bit/4-bit 12ns 8-Pin WSON EP

19840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.1.a
Part Status	Active
HTS	8542.32.00.71
Automotive	No
PPAP	No
Cell Type	NOR
Chip Density (bit)	32M
Architecture	Sectored
Boot Block	No
Block Organization	Symmetrical
Address Bus Width (bit)	24
Sector Size	4Kbyte x 1024
Page Size	256byte
Number of Bits/Word (bit)	1/2/4
Number of Words	32M/16M/8M
Programmability	Yes
Timing Type	Synchronous
Max. Access Time (ns)	12
Maximum Erase Time (s)	120/Chip
Maximum Programming Time (ms)	10/Page
Process Technology	CMOS
Interface Type	Serial (SPI, Dual SPI, Quad SPI)
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	1.65 to 3.6
Operating Current (mA)	9
Program Current (mA)	10
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Command Compatible	Yes
ECC Support	No
Support of Page Mode	No
Original Package	WSON EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	6
PCB changed	8
