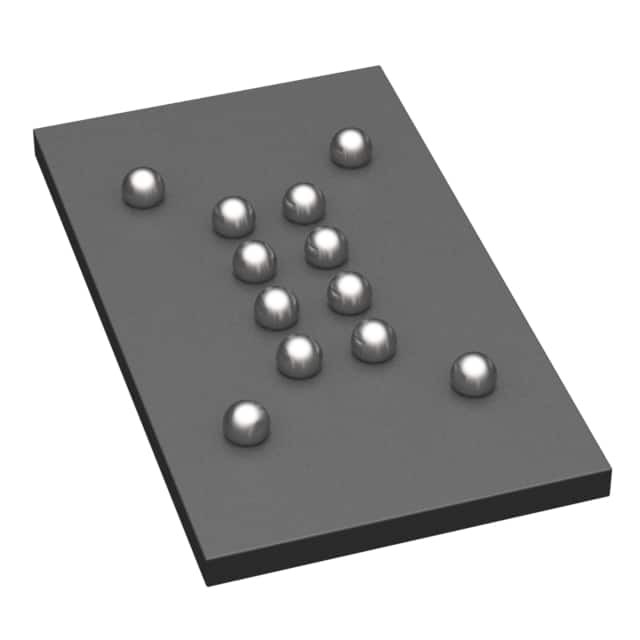

MX25R1635FBDIL0

SKU: 119790

Manufacturer: Macronix International

NOR Flash Serial (SPI, Dual SPI, Quad SPI) 1.8V/3.3V 16M-bit 16M/8M/4M x 1/2-bit/4-bit 12ns 12-Pin WLCSP

3650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.71
Automotive	No
PPAP	No
Cell Type	NOR
Chip Density (bit)	16M
Architecture	Sectored
Boot Block	No
Block Organization	Symmetrical
Address Bus Width (bit)	24
Sector Size	4Kbyte x 512
Bank Size	4/4/4/4Mb
Number of Banks	4
Page Size	256byte
Number of Bits/Word (bit)	1/2/4
Number of Words	16M/8M/4M
Programmability	Yes
Timing Type	Synchronous
Max. Access Time (ns)	12
Maximum Erase Time (s)	60/Chip
Maximum Programming Time (ms)	10/Page
Process Technology	75nm, CMOS
Interface Type	Serial (SPI, Dual SPI, Quad SPI)
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	1.65 to 3.6
Operating Current (mA)	9
Program Current (mA)	10
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Command Compatible	Yes
ECC Support	No
Support of Page Mode	No
Minimum Endurance (Cycles)	100000
Original Package	WLCSP
Pin Count	12
Terminal Form	Surface Mount
