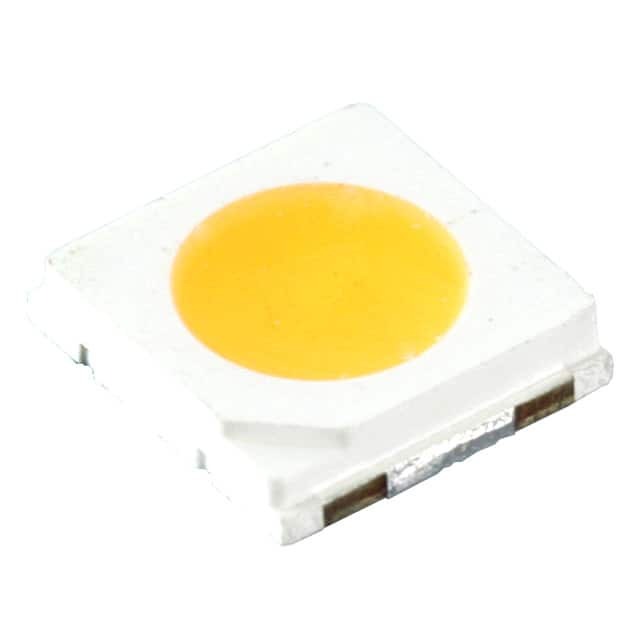

MXA8-PW22-0000 Lumileds

MXA8-PW22-0000

SKU: 56329

Manufacturer: Lumileds

LED Uni-Color White 2200K 80 2-Pin T/R

Download sample

Request Free Samples

3680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	Unknown
PPAP	Unknown
Type	Uni-Color
Product Category	Chip LED
Color	White
Number of LEDs	1
Lens Shape Type	Rectangular
Lens Dimensions (mm)	3.5x3.4x0.5
Mounting Orientation	Top Mount
Luminous Flux	33lm
Viewing Angle (°)	115
Maximum Forward Current (mA)	200
Test Current (mA)	100
Maximum Forward Voltage (V)	3.4
Reverse Voltage (V)	-5(Max)
Operating Temperature-Min	-40
Operating Temperature-Max	105
Color Temperature	2200K
Lead Standoff	No
Supplier Color	White
Color Rendering Index	80(Min)
High Power	Yes
High Brightness	Yes
Packing Method	Tape and Reel
Pin Count	2
Terminal Form	Surface Mount
Package Height	0.8
Package Length	3.7
Package Width	3.5
