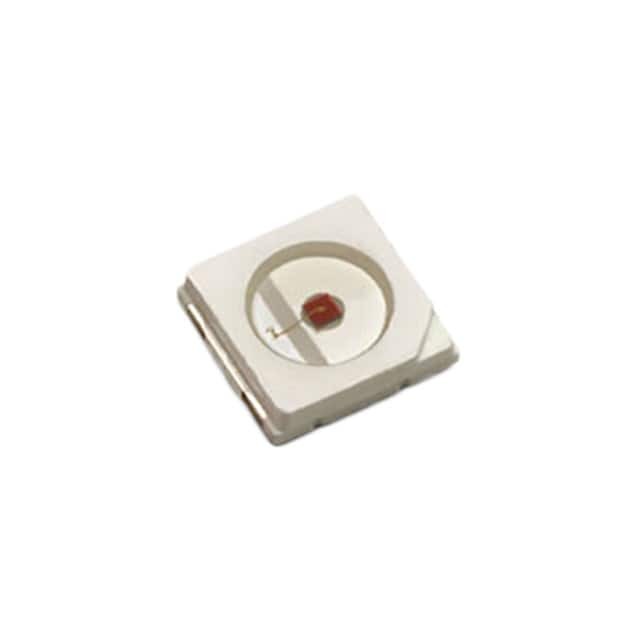

L135-R625003500000 Lumileds

L135-R625003500000

SKU: 33317

Manufacturer: Lumileds

LED Uni-Color Red 630nm Automotive 2-Pin SMD T/R

Download sample

Request Free Samples

3930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.40.20.00
Automotive	Unknown
PPAP	Unknown
Type	Uni-Color
Product Category	Chip LED
Color
Number of LEDs	1
Lens Shape Type	Circular
Lens Dimensions (mm)	2.6x2.6x0.5
Mounting Orientation	Top Mount
Luminous Flux	13.5lm
Dominant Wavelength (nm)	630(Max)
Peak Wavelength (nm)	630(Max)
Viewing Angle (°)	115
Maximum Forward Current (mA)	125
Test Current (mA)	100
Maximum Forward Voltage (V)	2.5
Operating Temperature-Max	105
Lead Standoff	No
Supplier Color	Red
High Power	Yes
High Brightness	Yes
Packing Method	Tape and Reel
Original Package	SMD
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	0.8
Package Length	3.5
Package Width	3.4
