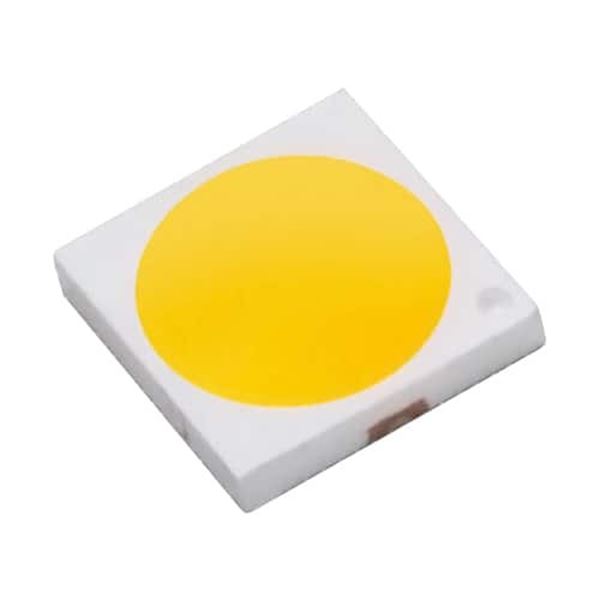

L130-6580003000W21

SKU: 75729

Manufacturer: Lumileds

LED High-Power LUXEON Uni-Color White 6500K 80 118lm 6V 2-Pin Chip 3030 T/R

1410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	Unknown
PPAP	Unknown
Type	Uni-Color
Product Category	Chip LED
Color	White
Number of LEDs	1
Lens Shape Type	Circular
Lens Dimensions (mm)	2.6x2.6x0.52
Mounting Orientation	Top Mount
Luminous Flux	118lm
Viewing Angle (°)	116
Maximum Forward Current (mA)	240
Test Current (mA)	120
Maximum Forward Voltage (V)	6.6
Reverse Voltage (V)	-5(Max)
Minimum Forward Voltage (V)	5.8
Typical Forward Voltage (V)	6
Maximum Junction Temperature (°C)	125
Internal Protection	No
Maximum Case Temperature (°C)	105
Operating Temperature-Min	-40
Operating Temperature-Max	105
Color Temperature	6500K
Lead Standoff	No
Temperature Coefficient of Voltage (mV/°C)	-2 to -4
Supplier Color	White
Special Color	White
Color Rendering Index	80
High Power	Yes
High Brightness	Yes
Packing Method	Tape and Reel
Tradename	LUXEON
Original Package	Case 3030
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	0.52
Package Length	3
Package Width	3
