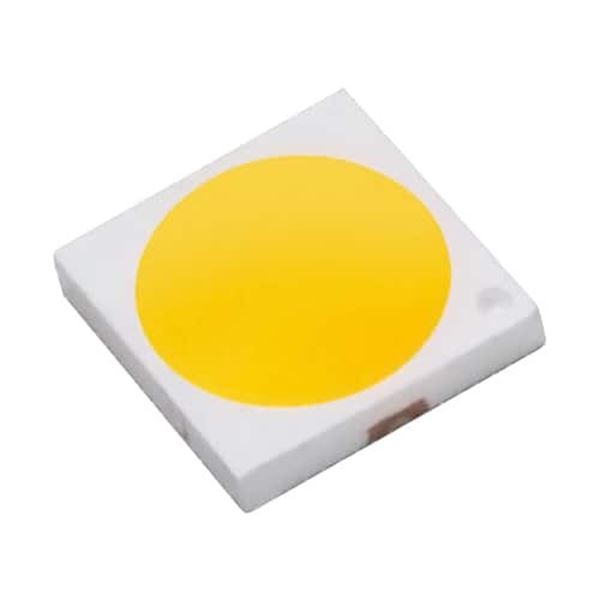

L130-4070003000W21

SKU: 54721

Manufacturer: Lumileds

LED High-Power LUXEON Uni-Color White 4000K 70 127lm 6V 2-Pin Chip 3030 T/R

2040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	Unknown
PPAP	Unknown
Type	Uni-Color
Product Category	Chip LED
Color	White
Number of LEDs	1
Lens Shape Type	Circular
Lens Dimensions (mm)	2.6x2.6x0.52
Mounting Orientation	Top Mount
Luminous Flux	127lm
Viewing Angle (°)	116
Maximum Forward Current (mA)	240
Test Current (mA)	120
Maximum Forward Voltage (V)	6.6
Reverse Voltage (V)	-5(Max)
Minimum Forward Voltage (V)	5.8
Typical Forward Voltage (V)	6
Maximum Junction Temperature (°C)	125
Internal Protection	No
Maximum Case Temperature (°C)	105
Operating Temperature-Min	-40
Operating Temperature-Max	105
Color Temperature	4000K
Lead Standoff	No
Temperature Coefficient of Voltage (mV/°C)	-2 to -4
Supplier Color	White
Special Color	White
Color Rendering Index	70
High Power	Yes
High Brightness	Yes
Packing Method	Tape and Reel
Product Weight (g)	0.161
Tradename	LUXEON
Original Package	Case 3030
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	0.52
Package Length	3
Package Width	3
