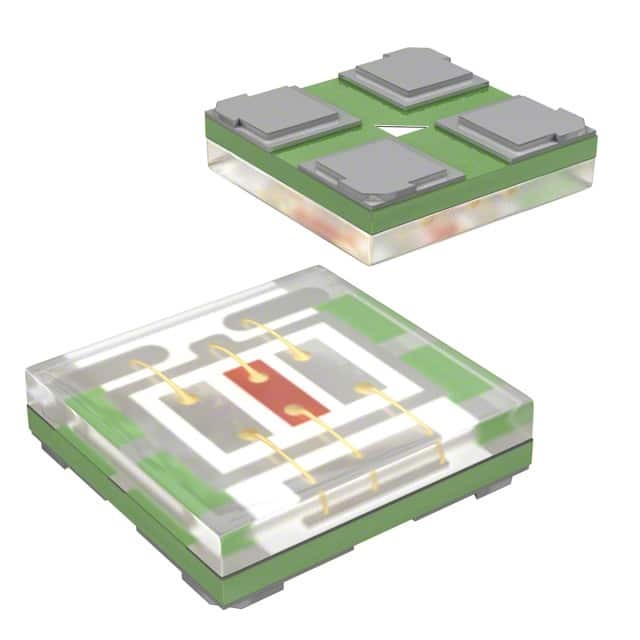

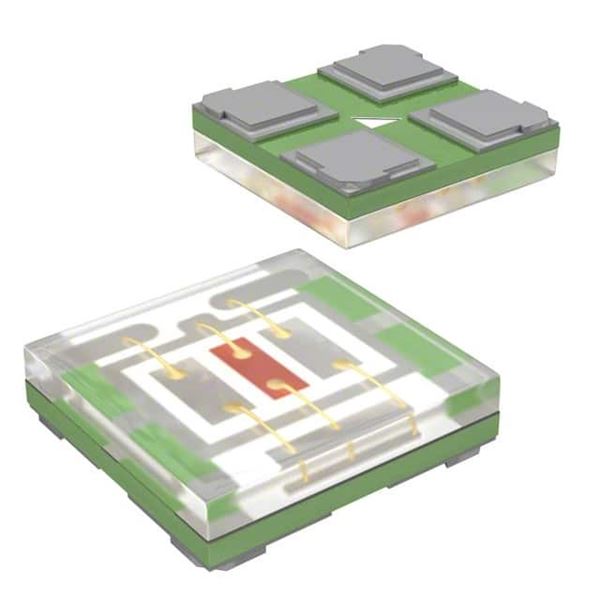

SML-LX0404SIUPGUSB

SKU: 50014

Manufacturer: Lumex

LED Low-Power Tri-Color Blue/Green/Red 465nm/518nm/632nm 2.7V/2.75V/1.95V 4-Pin SMD T/R

9900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Tri-Color
Product Category	Chip LED
Color	Blue/Green/Red
Number of LEDs	1
Lens Shape Type	Rectangular
Lens Appearance	Water Clear
Mounting Orientation	Top Mount
Intensity	20mcd
Peak Wavelength (nm)	465/518/632
Viewing Angle (°)	120
Maximum Forward Current (mA)	10/25/25
Test Current (mA)	2
Maximum Forward Voltage (V)	2.85/2.95/2.15
Reverse Voltage (V)	5(Min)
Typical Forward Voltage (V)	2.7/2.75/1.95
Internal Protection	No
Maximum Power Dissipation (mW)	30/95/60
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Blue/Green/Red
Special Color	Blue/Green/Red
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	SMD
Pin Count	4
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	0.25
Package Length	1
Package Width	1
PCB changed	4
